rec.name

Multi-tasking Turning Centers
rec.name

5-Axis Machining Centers
rec.name

CNC Turning Lathes
rec.name

Machining Centers
rec.name

Wheel Machining & Turnkey
Multi-tasking Turning Centers
Multi-tasking Milling Turning Center
VMT-X200
Items Single SP Double SP
Nose (chuck) A2-6 (8") inch
Maximum turning dia Ø500 mm
Max. turning length 1075 mm
Y axis 260 (-130 ~ +130) mm
VMT-X260
Items Single SP Double SP
Nose (chuck) A2-8 (10") inch
Maximum turning dia Ø500 mm
Max. turning length 1075 mm
Y axis 260 (-130 ~ +130) mm
VMT-X360
Items Single SP Double SP
Nose (chuck) A2-11 (12”) inch
Maximum turning dia Ø720 mm
Max. turning length 2100 mm
Y axis 420 (-210 ~ +210) mm
VMT-X400
Items Single SP Double SP
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø720 mm
Max. turning length 2100 mm
Y axis 420 (-210 ~ +210) mm
Multi-Turret Milling Turning Center
Vturn-Q200
Items T2Y2 T3Y3
Nose (chuck) A2-6 (8") inch
Maximum turning dia Ø248 mm
Max. turning length 850 mm
Y axis 90 (-45 ~ +45) mm
5-Axis Machining Centers
High Precision Accuracy 5-Axis Machining Centers
Vcenter-AX380
Items Non CTS CTS
Quill taper BBT-40
Max speed 12000 rpm
Work area Ø380 mm
Vcenter-AX630
Items Non CTS CTS
Quill taper BBT-40
Max speed 12000 rpm
Work area Ø630 x 500 mm
Vcenter-AX800
Items Non CTS CTS
Quill taper BBT-40
Max speed 15000 rpm
Work area Ø800 x 1250 mm
Fighting Model 5-Axis Machining Centers
Vcenter-FX400
Items Non CTS CTS
Quill taper BBT-40
Max speed 12000 rpm
Work area Ø320 mm
CNC Turning Lathes
High Performance Linear CNC Turning Lathes

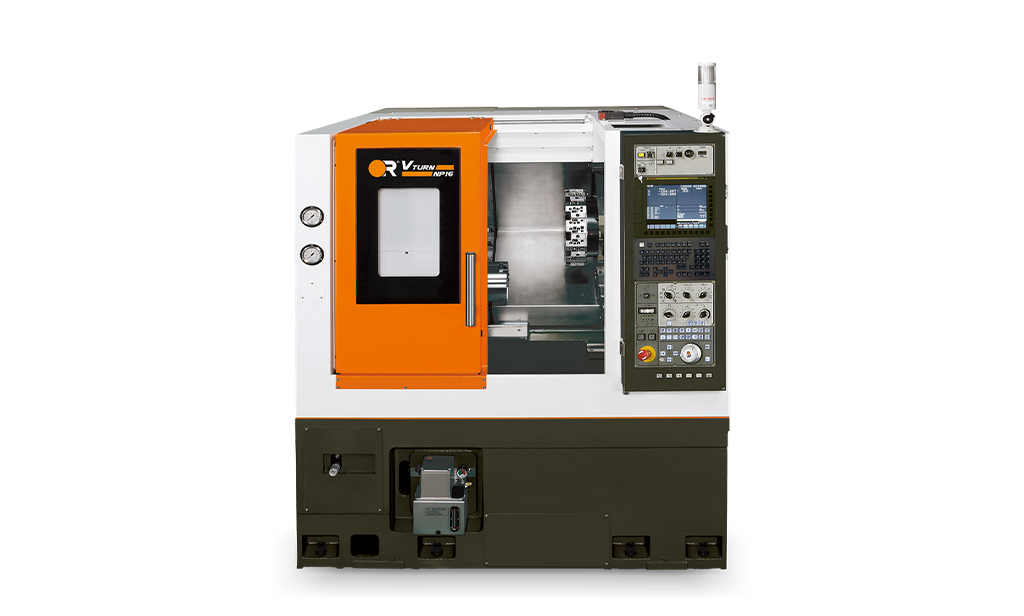

Vturn-NP16
Items 2 Axis C Axis
Nose (chuck) A2-5 (6") inch
Maximum turning dia Ø260 mm
Max. turning length 270 mm
Vturn-NP20
Items 2 Axis C Axis
Nose (chuck) A2-6 (8") inch
Maximum turning dia Ø320 mm
Max. turning length 520 mm
Vturn-NP26
Items 2 Axis C Axis
Nose (chuck) A2-8 (10") inch
Maximum turning dia 450 mm
Max. turning length 640 mm
Fighting Market Box Way CNC Turning Lathes
Vturn-F20/60
Items 2 Axis
Nose (chuck) A2-6 (8") inch
Maximum turning dia Ø320 mm
Vturn-F26/60
Items 2 Axis
Nose (chuck) A2-8 (10") inch
Maximum turning dia Ø430 mm
Max. turning length 640 mm
Vturn-F26/110
Items 2 Axis
Nose (chuck) A2-8 (10") inch
Maximum turning dia Ø430 mm
Max. turning length 1130 mm
High Steady Box Ways CNC Turning Lathes
Vturn-S20/40
Items 2 Axis C Axis
Nose (chuck) A2-6 (8") inch
Maximum turning dia Ø320 mm
Max. turning length 420 mm
Vturn-S20/60
Items 2 Axis C Axis
Nose (chuck) A2-6 (8") inch
Maximum turning dia Ø320 mm
Max. turning length 640 mm
Vturn-S26/60
Items 2 Axis C Axis
Nose (chuck) A2-8 (10") inch
Maximum turning dia Ø430 mm
Max. turning length 640 mm
Vturn-S26/110
Items 2 Axis C Axis
Nose (chuck) A2-8 (10") inch
Maximum turning dia Ø430 mm
Max. turning length 1130 mm
Vturn-S36/85
Items 2 Axis C Axis
Nose (chuck) A2-11 (12") inch
Maximum turning dia Ø580 mm
Max. turning length 898 mm
Vturn-S36/125
Items 2 Axis C Axis
Nose (chuck) A2-11 (12") inch
Maximum turning dia Ø580 mm
Max. turning length 1298 mm
Ahead of Performance CNC Turning Lathes
Vturn-A200/60
Items SM CM SCM YCM YSCM
Nose (chuck) A2-6 (8") inch
Maximum turning dia Ø330 mm
Max. turning length 604 mm
Vturn-A260/75
Items SM CM SCM YCM YSCM
Nose (chuck) A2-8 (10") inch
Maximum turning dia Ø420 mm
Max. turning length 750 mm
Vturn-A260/130
Items SM CM SCM YCM YSCM
Nose (chuck) A2-8 (10") inch
Maximum turning dia Ø480 mm
Max. turning length 1360 mm
Big Swing Over Box Ways CNC Turning Lathes
Vturn-40/125
Items 2 Axis C Axis Y Axis
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø620 mm
Max. turning length 1325 mm
Vturn-40/220
Items 2 Axis C Axis Y Axis
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø620 mm
Max. turning length 2275 mm
Vturn-40/325
Items 2 Axis C Axis Y Axis
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø620 mm
Max. turning length 3235 mm
Vturn-40/425
Items 2 Axis C Axis Y Axis
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø620 mm
Max. turning length 4305 mm
Vturn-45/125
Items 2 Axis C Axis Y Axis
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø620 mm
Max. turning length 1325 mm
Vturn-45/220
Items 2 Axis C Axis Y Axis
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø620 mm
Max. turning length 2275 mm
Vturn-45/325
Items 2 Axis C Axis Y Axis
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø620 mm
Max. turning length 3235 mm
Vturn-45/425
Items 2 Axis C Axis Y Axis
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø620 mm
Max. turning length 4305 mm
Vturn-46/165
Items 2 Axis
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø730 mm
Max. turning length 1750 mm
Vertical Turning Lathes
Vturn-V560
Items 2 Axis C Axis
Nose (chuck) A2-8 (12") inch
Maximum turning dia Ø560 mm
Max. turning length 532 mm
Vturn-V760
Items 2 Axis C Axis
Nose (chuck) A2-11 (18") inch
Maximum turning dia Ø760 mm
Max. turning length 760 mm
Vturn-V1000
Items 2 Axis C Axis
Nose (chuck) A2-15 (24") inch
Maximum turning dia Ø1000 mm
Max. turning length 850 mm
Machining Centers
Fighting Market Linear Machining Centers
Vcenter-F76
Items Non CTS CTS
Quill taper BT-40
Max speed 8000 rpm
Work area 840 x 500 mm
Vcenter-F106
Items Non CTS CTS
Quill taper BT-40
Max speed 8000 rpm
Work area 1120 x 520 mm
High Precision & Performance Linear Machining Centers
Vcenter-P76
Items Non CTS CTS
Quill taper BBT-40
Max speed 12000 rpm
Work area 840 x 500 mm
Vcenter-P76APC
Items Non CTS CTS
Quill taper BBT-40
Max speed 12000 rpm
Work area 720 x 400 mm
Vcenter-P106
Items Non CTS CTS
Quill taper BBT-40
Max speed 12000 rpm
Work area 1120 x 520 mm
Vcenter-P136
Items Non CTS CTS
Quill taper BBT-40
Max speed 12000 rpm
Work area 1400 x 700 mm

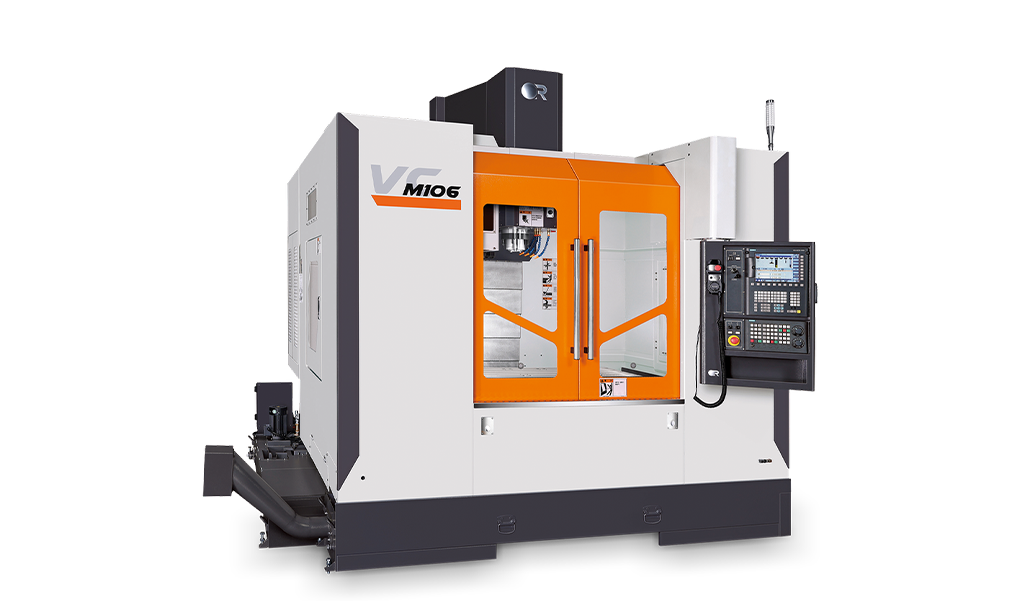

Vcenter-M106
Items CTS
Quill taper BBT-40
Max speed 15000 rpm
Work area 1120 x 520 mm
Vcenter-205
Items CTS
Quill taper BT-40
Max speed 12000 rpm
Work area 2500 x 550 mm

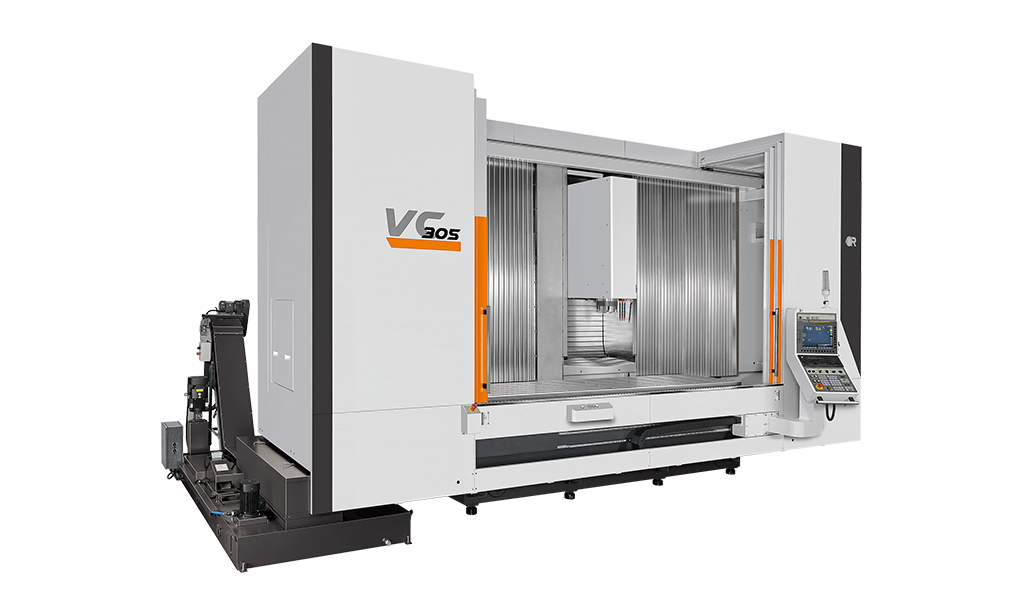

Vcenter-305
Items CTS
Quill taper BBT-40
Max speed 12000 rpm
Work area 3510 x 770 mm
High Steady Box Ways Machining Centers
Vcenter-G105
Items Non CTS CTS
Quill taper BBT-50
Max speed 6000 rpm
Work area 1100 x 600 mm
Vcenter-G135
Items Non CTS CTS
Quill taper BBT-50
Max speed 6000 rpm
Work area 1400 x 700 mm
Vcenter-G165
Items Non CTS CTS
Quill taper BBT-50
Max speed 6000 rpm
Work area 1700 x 800 mm
Horizontal Machining Centers

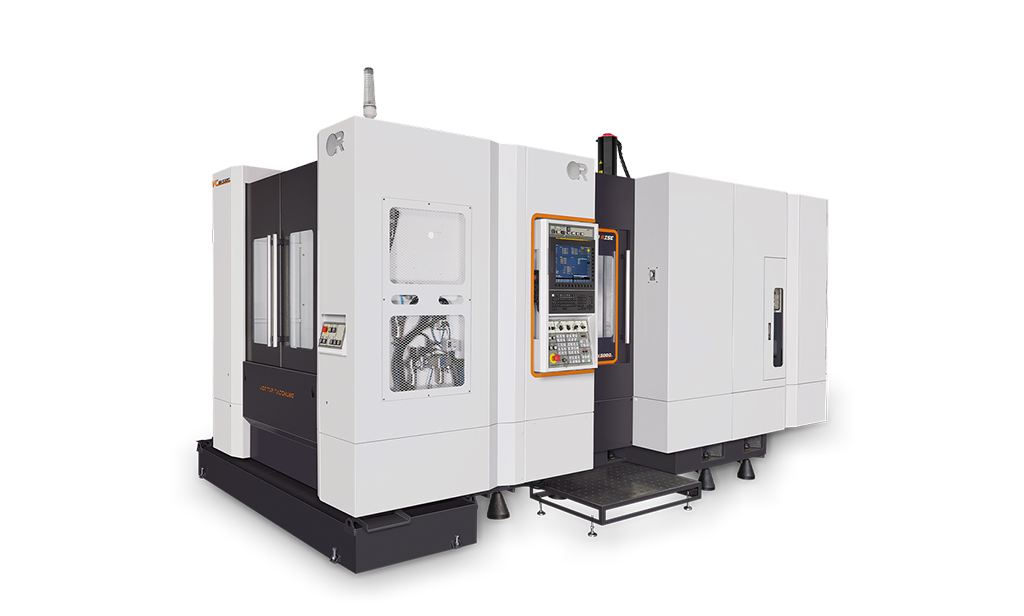

Vcenter-NH5000
Items CTS
Quill taper BBT-40
Max speed 12000 rpm
Work area 500 x 500 mm
Vcenter-H400
Items Non CTS CTS
Quill taper BBT-40
Max speed 15000 rpm
Work area 400 x 400 mm
Vcenter-H500
Items Non CTS CTS
Quill taper BT-50
Max speed 6000 rpm
Work area 500 x 500 mm
Vcenter-H500HS
Items Non CTS CTS
Quill taper BT-40
Max speed 15000 rpm
Work area 500 x 500 mm
Vcenter-H630HS
Items Non CTS CTS
Quill taper BT-50
Max speed 10000 rpm
Work area 630 x 630 mm
Vcenter-H630HD
Items Non CTS CTS
Quill taper BT-50
Max speed 4500 rpm
Work area 630 x 630 mm
Vcenter-H1000
Items Non CTS CTS
Quill taper BT-50
Max speed 4500 rpm
Work area 1000 x 1000 mm
Wheel Machining & Turnkey
Lathe Series Wheel Machining & Turnkey
Vturn-18W
Items 2 Axis
Nose (chuck) A2-8 inch
Maximum turning dia Ø530 mm
Vturn-22W
Items 2 Axis
Nose (chuck) A2-8 inch
Maximum turning dia Ø620 mm
Vturn-24W
Items 2 Axis
Nose (chuck) A2-8 inch
Maximum turning dia Ø720 mm
Vturn-V22W
Items 四軸
Nose (chuck) A2-13 inch
Maximum turning dia Ø750 mm
Vturn-V22WT2
Items 2 Axis
Nose (chuck) A2-13 inch
Maximum turning dia Ø750 mm
Vturn-V26W
Items 四軸
Nose (chuck) A2-11 inch
Maximum turning dia Ø760 mm
Vturn-V26WT2
Items 2 Axis
Nose (chuck) A2-11 inch
Maximum turning dia Ø850 mm
Machine Center Series Wheel Machining & Turnkey
Vcenter-22W
Items 四軸
Quill taper BT-40
Max speed 8000 rpm
Vcenter-24W
Items 四軸
Quill taper BBT-40
Max speed 12000 rpm
Vcenter-H26W
Items 四軸
Quill taper BT-40
Max speed 8000 rpm
