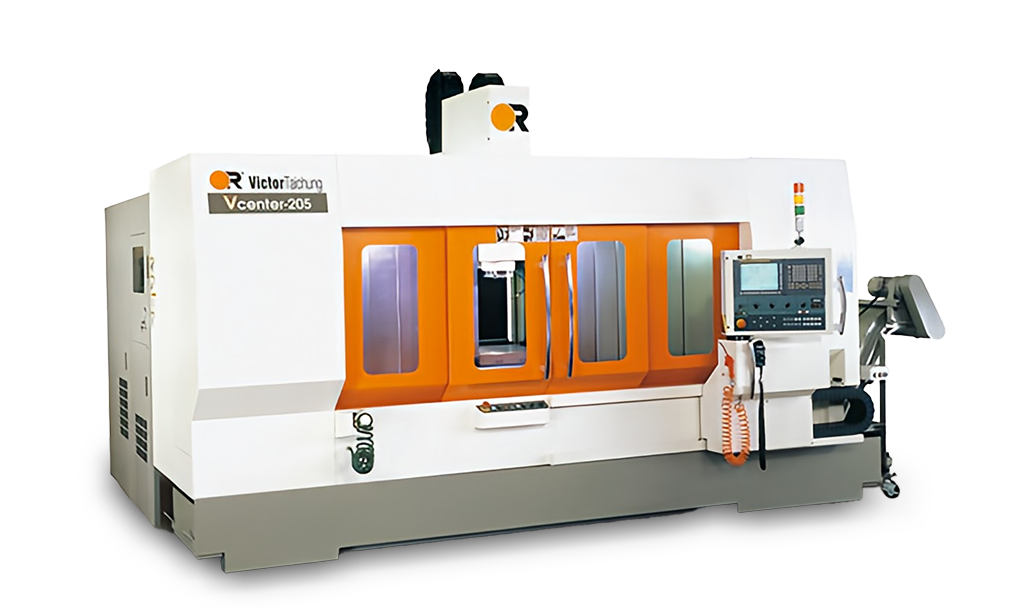

Vcenter-205
High Precision & Performance Machining Centers Vcenter-P Series
Specifications
| Travel | ||
|---|---|---|
| X axis | mm inch | 2050 80.70 |
| Y axis | mm inch | 550 21.65 |
| Z axis | mm inch | 560 22.04 |
| Table | ||
|---|---|---|
| Work area | mm inch | 2500 x 550 98.42 x 21.65 |
| T-slot | mm | 5 x 18 x 100 |
| Max load | kg lb | 1200 2645.54 |
| Spindle | ||
|---|---|---|
| Quill taper | BT-40 | |
| Motor power | KW HP | 7.5 / 11 / 15 10 / 15 / 20 |
| Max speed | 12000 | |
| Tools | ||
|---|---|---|
| Capacity | 24 | |
| Max wight | kg lb | 8 17.63 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 9840 21693.46 |
| Uncategorized | ||
|---|---|---|
| Items | CTS | |
| Mc spindle speed (rpm) | 10001 < | |
| Mc table work area (mm) | 1201 < | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
2050
80.70
Y axis
mm
inch
550
21.65
Z axis
mm
inch
560
22.04
Table
Work area
mm
inch
2500 x 550
98.42 x 21.65
T-slot
mm
5 x 18 x 100
Max load
kg
lb
1200
2645.54
Spindle
Quill taper
BT-40
Motor power
KW
HP
7.5 / 11 / 15
10 / 15 / 20
Max speed
rpm
12000
Tools
Capacity
T
24
Max wight
kg
lb
8
17.63
Accuracy (ISO 230-2)
Accuracy
mm
0.010
Repeatability
mm
0.007 (±0.0035)
Machine
Weight
kg
lb
9840
21693.46
