DONE IN ONE

Multitasking machinery with twin built-in spindles for turning and a swivel head for milling/drilling completes a part in one set-up.
Roller geared B-axis swivel head with 15 degree indexing ready for multi-tasking flash tools guarantees high turning capability.



  • Lc maximun turning dia (mm)
  • Lc between centers (mm)
  1. 首頁
  2. Products
  3. Machine Tools
  4. Multi-tasking Turning Centers
rec.name

Multi-tasking Milling Turning Center
rec.name

Multi-Turret Milling Turning Center
Multi-tasking Turning Centers
Multi-tasking Milling Turning Center
VMT-X200
Items Single SP Double SP
Nose (chuck) A2-6 (8") inch
Maximum turning dia Ø500 mm
Max. turning length 1075 mm
Y axis 260 (-130 ~ +130) mm
VMT-X260
Items Single SP Double SP
Nose (chuck) A2-8 (10") inch
Maximum turning dia Ø500 mm
Max. turning length 1075 mm
Y axis 260 (-130 ~ +130) mm
VMT-X360
Items Single SP Double SP
Nose (chuck) A2-11 (12”) inch
Maximum turning dia Ø720 mm
Max. turning length 2100 mm
Y axis 420 (-210 ~ +210) mm
VMT-X400
Items Single SP Double SP
Nose (chuck) A2-11 (15") inch
Maximum turning dia Ø720 mm
Max. turning length 2100 mm
Y axis 420 (-210 ~ +210) mm
Multi-Turret Milling Turning Center

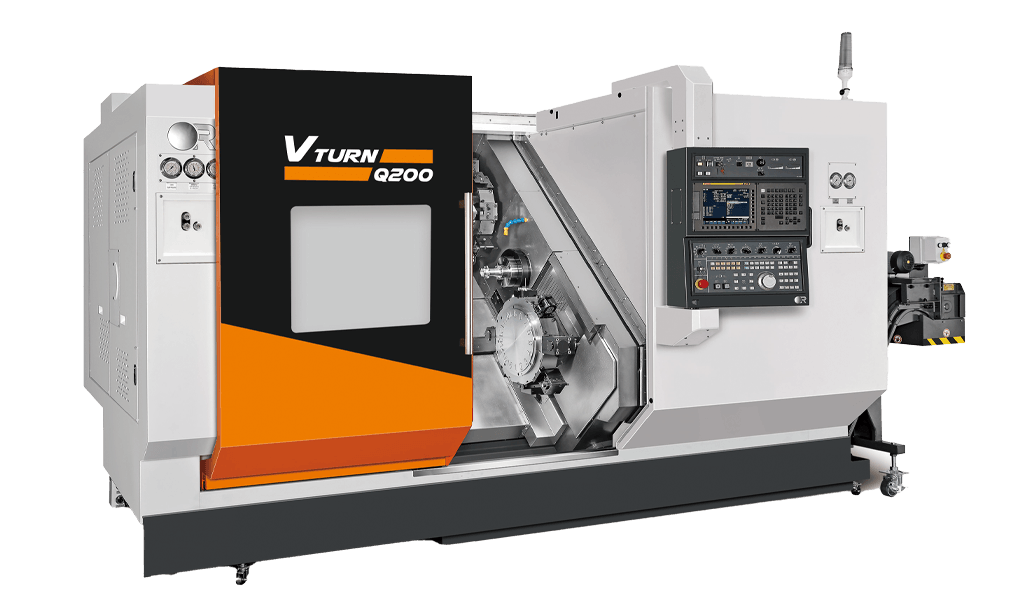

Vturn-Q200
Items T2Y2 T3Y3
Nose (chuck) A2-6 (8") inch
Maximum turning dia Ø248 mm
Max. turning length 850 mm
Y axis 90 (-45 ~ +45) mm
