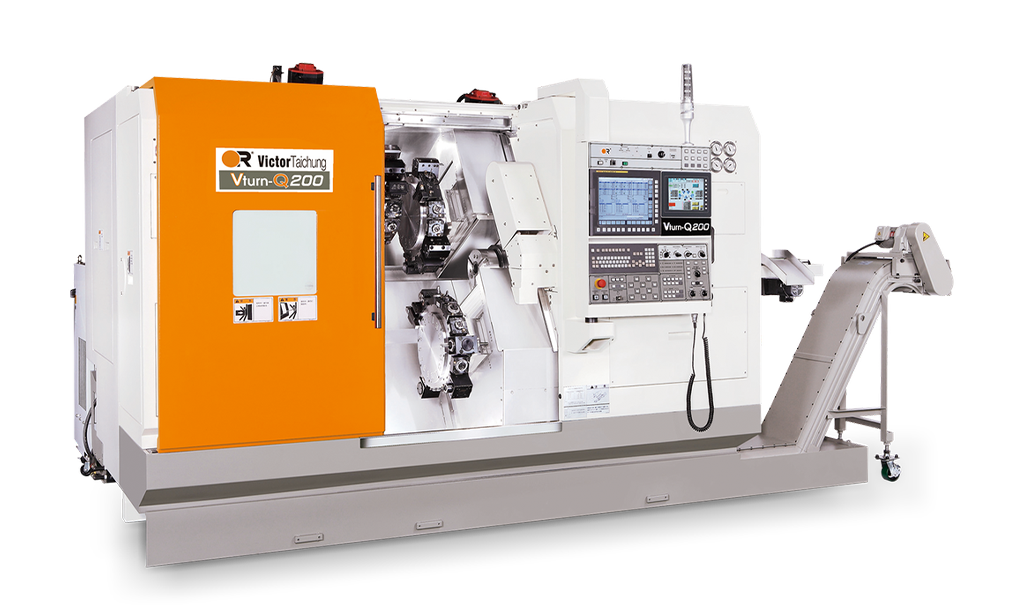

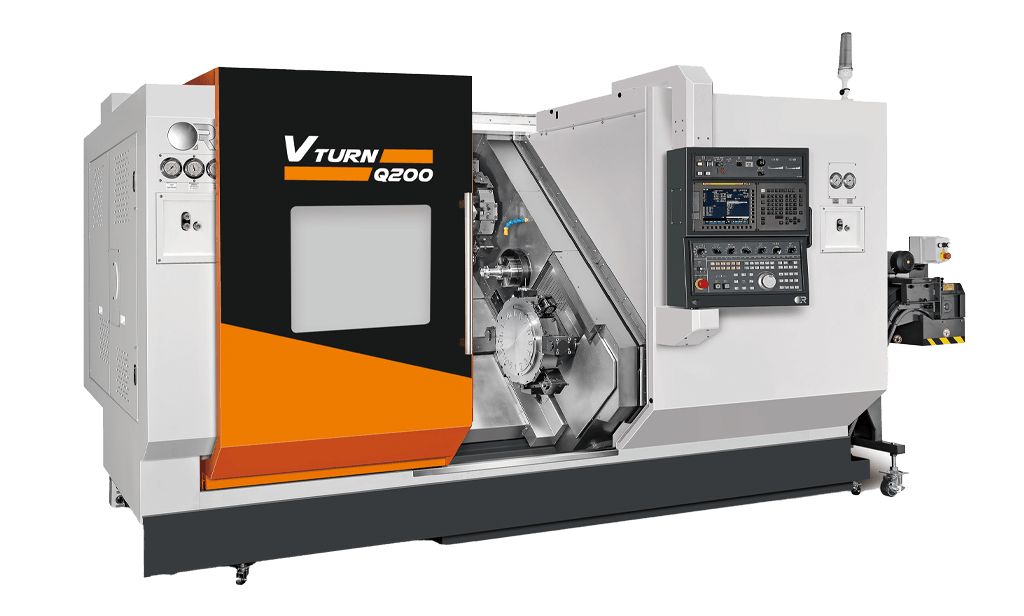

Vturn-Q200
CNC Milling Turning Center Vturn-Q Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø330 Ø12.99 |
| Maximum turning dia | mm inch | Ø248 Ø9.76 |
| Max. turning length | mm inch | 850 33.46 |
| Axis Travel |
|---|
| Main Spindle | ||
|---|---|---|
| Max speed | 5000 | |
| Nose (chuck) | A2-6 (8") | |
| Bar capacity | mm inch | Ø52 Ø2.04 |
| Sub Spindle | ||
|---|---|---|
| Max speed | 5000 | |
| Nose (chuck) | A2-6 (8") | |
| Bar capacity | mm inch | Ø52 Ø2.04 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 16 | |
| Shank size | □20 | |
| Milling speed | 6000 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 9560 21076.16 |
| Uncategorized | ||
|---|---|---|
| Items | T2Y2 | |
| Lc maximun turning dia (mm) | < 350 | |
| Lc between centers (mm) | < 800 | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø330
Ø12.99
Ø330
Ø12.99
Maximum turning dia
mm
inch
Ø248
Ø9.76
Ø248
Ø9.76
Max. turning length
mm
inch
850
33.46
850
33.46
Main Spindle
Max speed
rpm
5000
5000
Nose (chuck)
inch
A2-6 (8")
A2-6 (8")
Bar capacity
mm
inch
Ø52
Ø2.04
Ø52
Ø2.04
Sub Spindle
Max speed
rpm
5000
5000
Nose (chuck)
inch
A2-6 (8")
A2-6 (8")
Bar capacity
mm
inch
Ø52
Ø2.04
Ø52
Ø2.04
Turret
NO. of tools (live)
T
16
16
Shank size
mm
□20
□20
Milling speed
6000
6000
Machine
Weight
kg
lb
9560
21076.16
11200
24691.74
