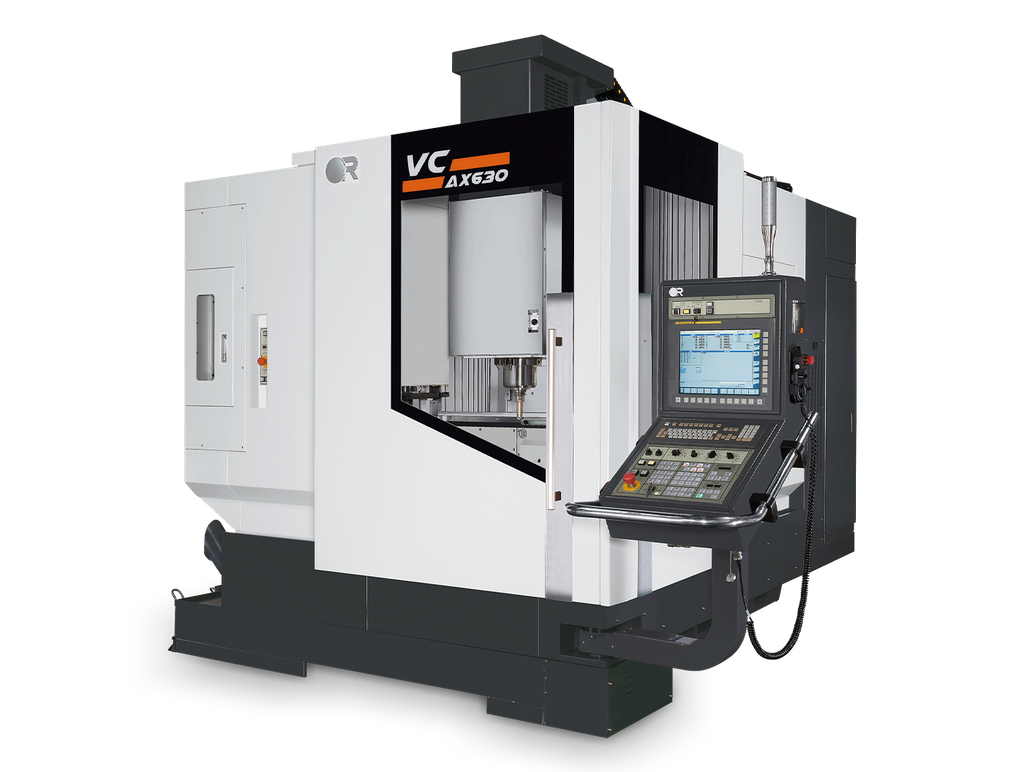

Vcenter-AX630
5-Axis CNC Machining Center Vcenter-AX Series
Specifications
| Travel | ||
|---|---|---|
| X axis | mm inch | 700 27.55 |
| Y axis | mm inch | 500 19.68 |
| Z axis | mm inch | 500 19.68 |
| B axis | -30 ~ 110 | |
| C axis | 0 ~ 360 | |
| Table | ||
|---|---|---|
| Work area | mm inch | Ø630 x 500 Ø24.8 x 19.68 |
| T-slot | mm | 5 x 18H7 x 100 |
| Max load | kg lb | 300 661.38 |
| Spindle | ||
|---|---|---|
| Quill taper | BBT-40 | |
| Motor power | KW HP | 11 / 15 / 18.5 15 / 20 / 25 |
| Max speed | 12000 | |
| Tools | ||
|---|---|---|
| Capacity | 30 | |
| Max wight | kg lb | 7 15.43 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 9000 19841.57 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc table work area (mm) | 381 ~ 630 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
700
27.55
700
27.55
Y axis
mm
inch
500
19.68
500
19.68
Z axis
mm
inch
500
19.68
500
19.68
B axis
-30 ~ 110
-30 ~ 110
C axis
deg
0 ~ 360
0 ~ 360
Table
Work area
mm
inch
Ø630 x 500
Ø24.8 x 19.68
Ø630 x 500
Ø24.8 x 19.68
T-slot
mm
5 x 18H7 x 100
5 x 18H7 x 100
Max load
kg
lb
300
661.38
300
661.38
Spindle
Quill taper
BBT-40
BBT-40
Motor power
KW
HP
11 / 15 / 18.5
15 / 20 / 25
7.5 / 11 / 15
10 / 15 / 20
Max speed
rpm
12000
12000
Tools
Capacity
T
30
30
Max wight
kg
lb
7
15.43
7
15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
9000
19841.57
9000
19841.57
