Specifications

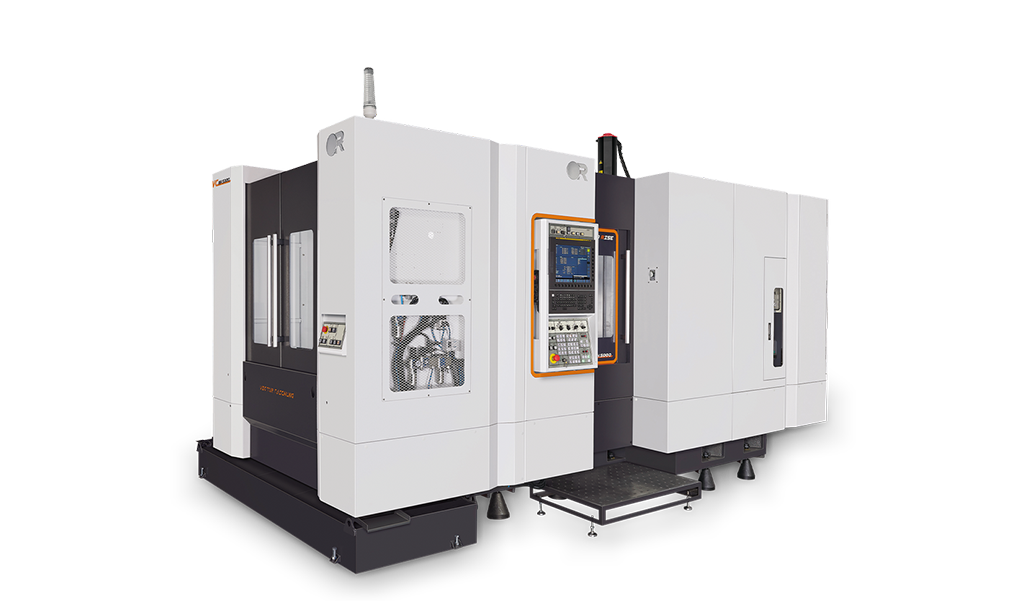

NH5000
| Travel | ||
|---|---|---|
| X axis | mm inch | 31.49 800 |
| Y axis | mm inch | 27.55 700 |
| Z axis | mm inch | 31.49 800 |
| B axis | 0 ~ 360 | |
| Table | ||
|---|---|---|
| Work area | mm inch | 19.68 x 19.68 500 x 500 |
| Surface configuration | mm | M16 x P2.0 |
| Max load | kg lb | 1102.30 500 |
| Pallet exchange time | 6.5(P-P), 11(C-C) | |
| Spindle | ||
|---|---|---|
| Quill taper | BBT-40 | |
| Motor power | KW HP | 20 / 25 15 / 18.5 |
| Max speed | 12000 | |
| Tools | ||
|---|---|---|
| Capacity | 40 | |
| Max wight | kg lb | 15.43 7 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 28660.05 13000 |
| Uncategorized | ||
|---|---|---|
| Items | CTS | |
| Mc spindle speed (rpm) | 10001 < | |
| Mc table work area (mm) | < 1000 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
800
31.49
Y axis
mm
inch
700
27.55
Z axis
mm
inch
800
31.49
B axis
0 ~ 360
Table
Work area
mm
inch
500 x 500
19.68 x 19.68
Surface configuration
mm
M16 x P2.0
Max load
kg
lb
500
1102.30
Pallet exchange time
6.5(P-P), 11(C-C)
Spindle
Quill taper
BBT-40
Motor power
KW
HP
15 / 18.5
20 / 25
Max speed
rpm
12000
Tools
Capacity
T
40
Max wight
kg
lb
7
15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
Repeatability
mm
0.007 (±0.0035)
Machine
Weight
kg
lb
13000
28660.05
