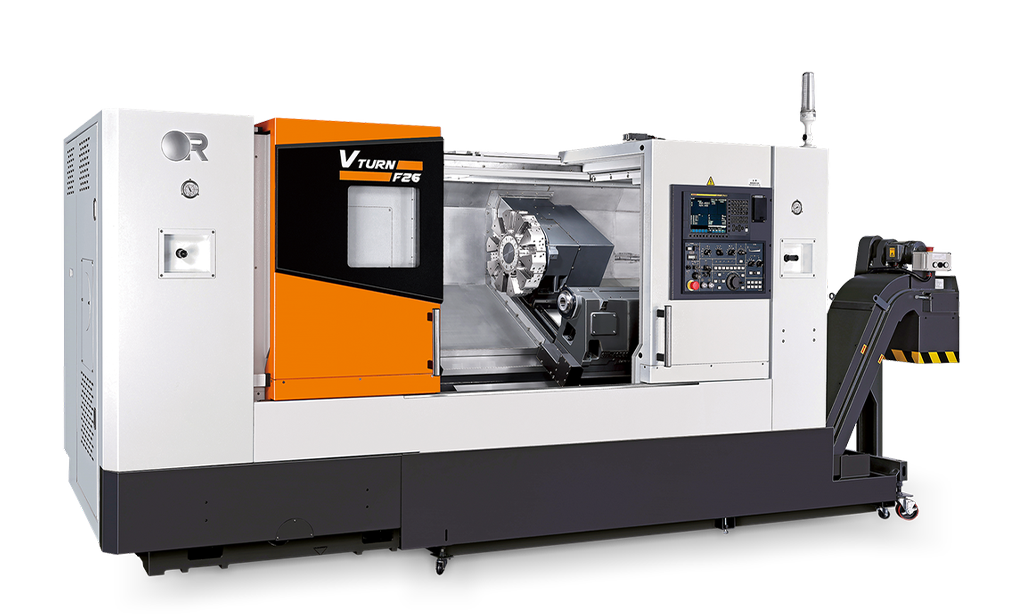

Vturn-F20/60
CNC Horizontal Lathe Vturn-F Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | 435 17125.99 |
| Standard turning dia | mm inch | Ø230 Ø9.05 |
| Maximum turning dia | mm inch | Ø320 Ø12.59 |
| Main Spindle | ||
|---|---|---|
| Max speed | 4200 | |
| Nose (chuck) | A2-6 (8") | |
| Bar capacity | mm inch | Ø52 Ø2.04 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 12 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #4 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 4450 9810.55 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Lc maximun turning dia (mm) | < 350 | |
| Lc between centers (mm) | < 800 | |
| Type | NO MILLING | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
435
17125.99
Standard turning dia
mm
inch
Ø230
Ø9.05
Maximum turning dia
mm
inch
Ø320
Ø12.59
Main Spindle
Max speed
rpm
4200
Nose (chuck)
inch
A2-6 (8")
Bar capacity
mm
inch
Ø52
Ø2.04
Turret
NO. of tools (live)
T
12
Tailstock
Quill taper
M.T. #4
Machine
Weight
kg
lb
4450
9810.55
