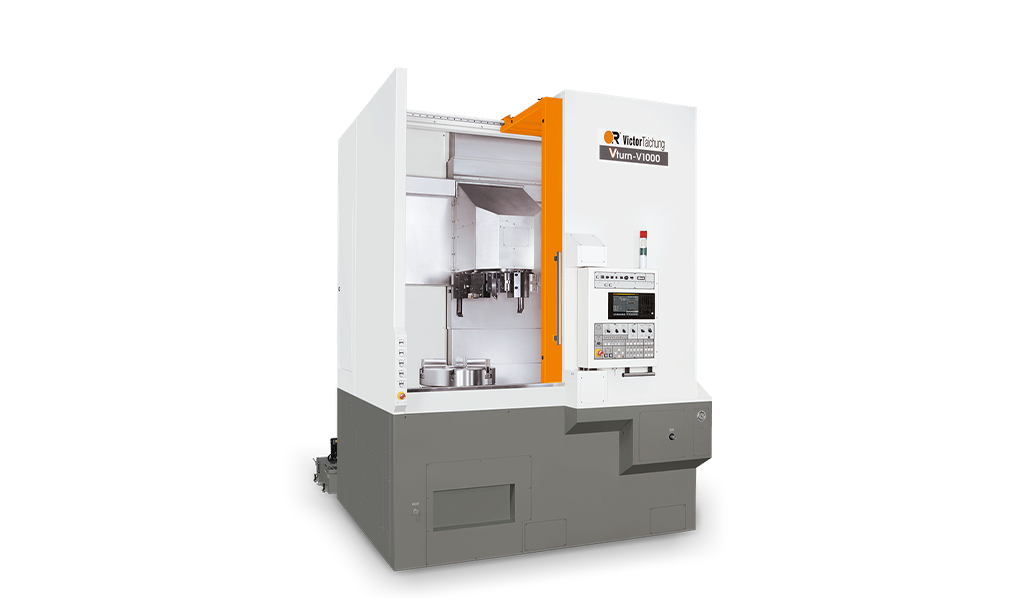

Vturn-V1000
Vertical Turning Lathes Vturn-V Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø870 Ø34.25 |
| Standard turning dia | mm inch | 885 34.84 |
| Maximum turning dia | mm inch | Ø1000 Ø39.37 |
| Max. turning length | mm inch | 850 33.46 |
| Main Spindle | ||
|---|---|---|
| Max speed | 1500 | |
| Nose (chuck) | A2-15 (24") | |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 12 | |
| Shank size | BMT-85 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 16000 35273.91 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Lc between centers (mm) | < 800 | 801 ~ 1500 | |
| Type | NO MILLING | MILLING | |
| Lc maximun turning dia (mm) | 551 < | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø870
Ø34.25
Ø870
Ø34.25
Standard turning dia
mm
inch
885
34.84
756
29.76
Maximum turning dia
mm
inch
Ø1000
Ø39.37
Ø1000
Ø39.37
Max. turning length
mm
inch
850
33.46
825
32.48
Main Spindle
Max speed
rpm
1500
1500
Nose (chuck)
inch
A2-15 (24")
A2-15 (24")
Turret
NO. of tools (live)
T
12
12
Shank size
mm
BMT-85
BMT-85
Machine
Weight
kg
lb
16000
35273.91
16000
35273.91
