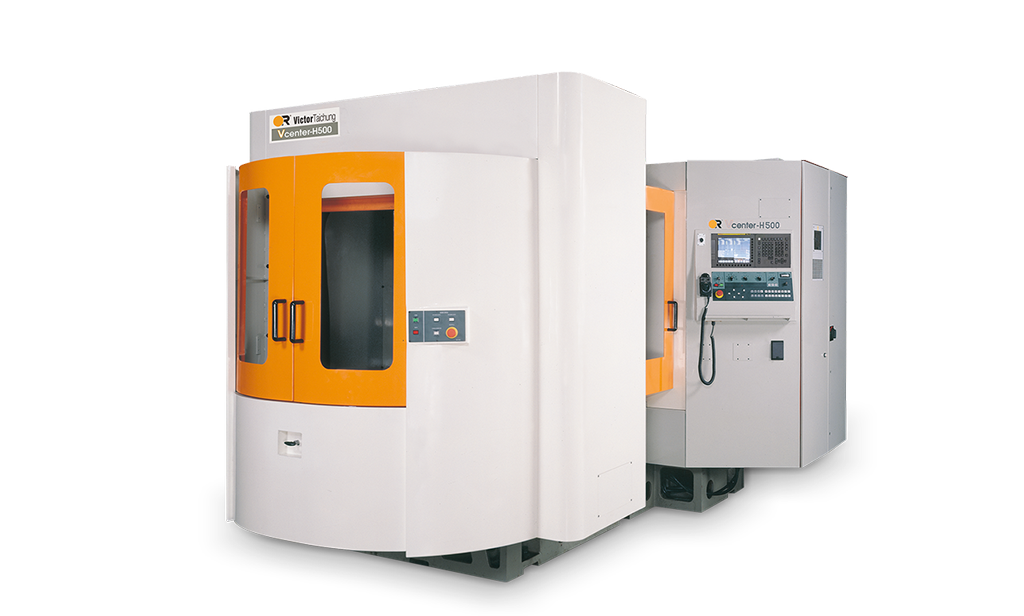

Vcenter-H500HS
Horizontal Machining Centers Vcenter-H Series
Specifications
| Travel | ||
|---|---|---|
| X axis | mm inch | 720 28.34 |
| Y axis | mm inch | 650 25.59 |
| Z axis | mm inch | 720 28.34 |
| B axis | 0 ~ 360 | |
| Table | ||
|---|---|---|
| Work area | mm inch | 500 x 500 19.68 x 19.68 |
| Surface configuration | mm | M16 x P2.0 |
| Max load | kg lb | 800 1763.69 |
| Pallet exchange time | 6.5(P-P), 11(C-C) | |
| Spindle | ||
|---|---|---|
| Quill taper | BT-40 | |
| Motor power | KW HP | 18.5 / 22 25 / 29.5 |
| Max speed | 15000 | |
| Tools | ||
|---|---|---|
| Capacity | 40 | |
| Max wight | kg lb | 7 15.43 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 12500 27557.74 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | 10001 < | |
| Mc table work area (mm) | < 1000 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
720
28.34
720
28.34
Y axis
mm
inch
650
25.59
650
25.59
Z axis
mm
inch
720
28.34
720
28.34
B axis
0 ~ 360
0 ~ 360
Table
Work area
mm
inch
500 x 500
19.68 x 19.68
500 x 500
19.68 x 19.68
Surface configuration
mm
M16 x P2.0
M16 x P2.0
Max load
kg
lb
800
1763.69
800
1763.69
Pallet exchange time
6.5(P-P), 11(C-C)
6.5(P-P), 11(C-C)
Spindle
Quill taper
BT-40
BT-40
Motor power
KW
HP
18.5 / 22
25 / 29.5
18.5 / 22
25 / 29.5
Max speed
rpm
15000
15000
Tools
Capacity
T
40
40
Max wight
kg
lb
7
15.43
7
15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
12500
27557.74
12500
27557.74
