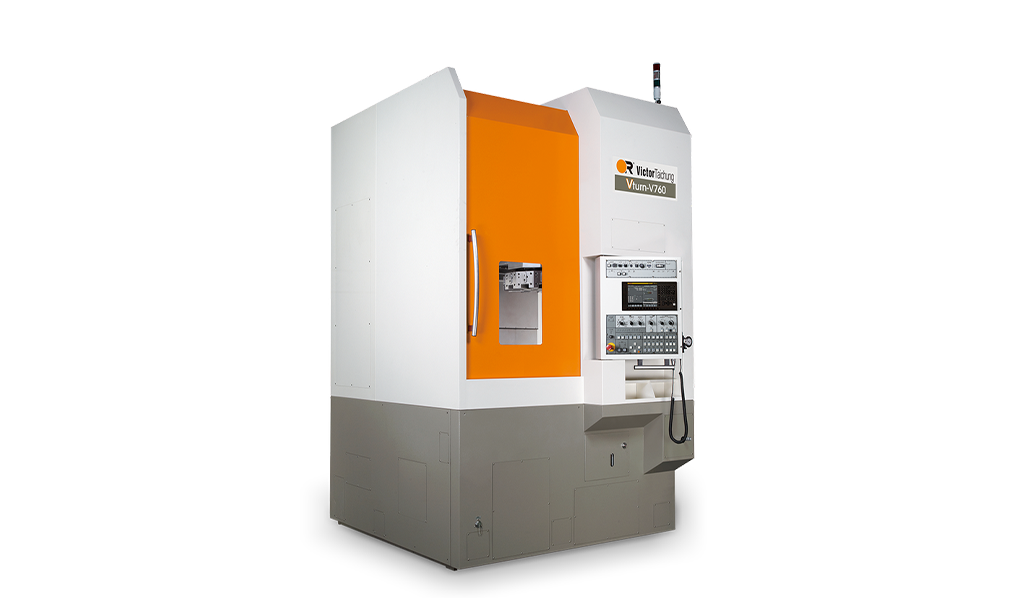

Vturn-V760
Vertical Turning Lathes Vturn-V Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø650 Ø25.59 |
| Standard turning dia | mm inch | Ø630 Ø24.8 |
| Maximum turning dia | mm inch | Ø760 Ø29.92 |
| Max. turning length | mm inch | 760 29.92 |
| Main Spindle | ||
|---|---|---|
| Max speed | 2000 | |
| Nose (chuck) | A2-11 (18") | |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 12 | |
| Shank size | □32 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 12500 27557.74 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Type | NO MILLING | MILLING | |
| Lc maximun turning dia (mm) | 551 < | |
| Lc between centers (mm) | < 800 | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø650
Ø25.59
Ø650
Ø25.59
Standard turning dia
mm
inch
Ø630
Ø24.8
Ø630
Ø24.8
Maximum turning dia
mm
inch
Ø760
Ø29.92
Ø730
Ø28.74
Max. turning length
mm
inch
760
29.92
760
29.92
Main Spindle
Max speed
rpm
2000
2000
Nose (chuck)
inch
A2-11 (18")
A2-11 (18")
Turret
NO. of tools (live)
T
12
12
Shank size
mm
□32
VDI-50
Machine
Weight
kg
lb
12500
27557.74
12500
27557.74
