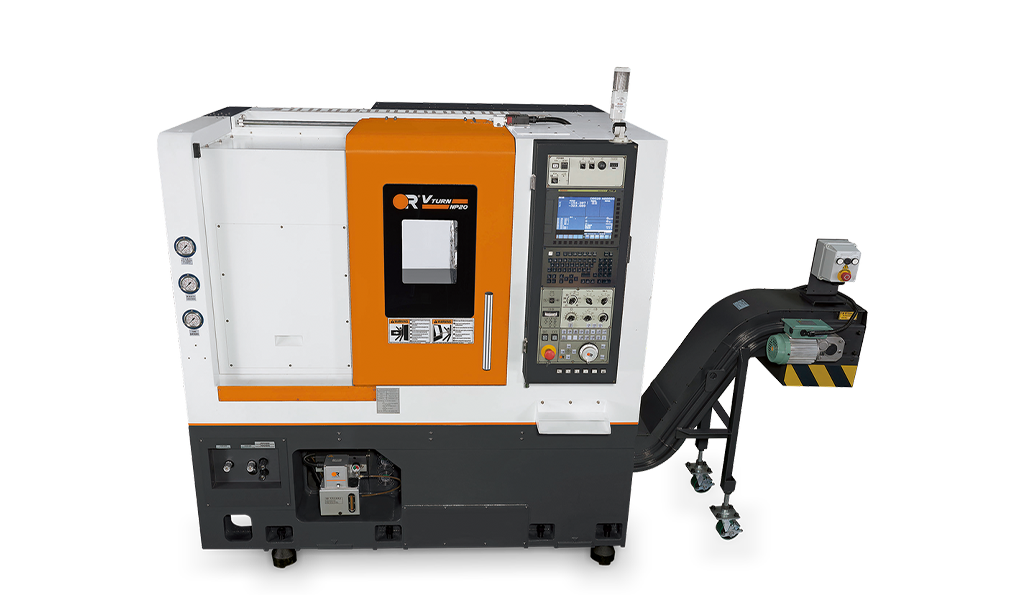

Vturn-NP20
Horizontal Turning Lathe Vturn-NP Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø365 Ø14.37 |
| Standard turning dia | mm inch | Ø206 Ø8.11 |
| Maximum turning dia | mm inch | Ø320 Ø12.59 |
| Max. turning length | mm inch | 520 20.47 |
| Main Spindle | ||
|---|---|---|
| Max speed | 4200 | |
| Nose (chuck) | A2-6 (8") | |
| Bar capacity | mm inch | Ø52 Ø2.04 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 12 | |
| Shank size | □25 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #4 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 4000 8818.47 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Type | NO MILLING | MILLING | |
| Lc maximun turning dia (mm) | < 350 | |
| Lc between centers (mm) | < 800 | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø365
Ø14.37
Ø365
Ø14.37
Standard turning dia
mm
inch
Ø206
Ø8.11
Ø234
Ø9.21
Maximum turning dia
mm
inch
Ø320
Ø12.59
Ø260
Ø10.23
Max. turning length
mm
inch
520
20.47
520
20.47
Main Spindle
Max speed
rpm
4200
4200
Nose (chuck)
inch
A2-6 (8")
A2-6 (8")
Bar capacity
mm
inch
Ø52
Ø2.04
Ø52
Ø2.04
Turret
NO. of tools (live)
T
12
12
Shank size
mm
□25
□25
Tailstock
Quill taper
M.T. #4
M.T. #4
Machine
Weight
kg
lb
4000
8818.47
4370
9634.18
