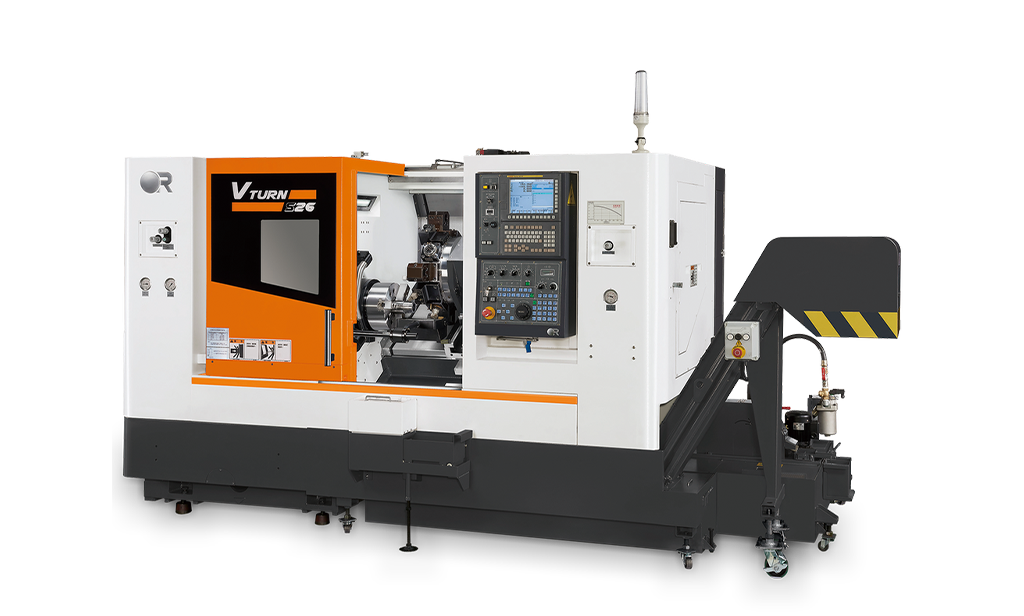

Vturn-S26/110
3 Axis CNC Turning Machine Vturn-S Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø480 Ø18.89 |
| Standard turning dia | mm inch | Ø350 Ø13.77 |
| Maximum turning dia | mm inch | Ø430 Ø16.92 |
| Max. turning length | mm inch | 1130 44.48 |
| Main Spindle | ||
|---|---|---|
| Max speed | 3500 | |
| Nose (chuck) | A2-8 (10") | |
| Bar capacity | mm inch | Ø75 Ø2.95 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 10 | |
| Shank size | □25 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #5 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 6650 14660.72 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Type | NO MILLING | MILLING | |
| Lc maximun turning dia (mm) | 351 ~ 550 | |
| Lc between centers (mm) | 801 ~ 1500 | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø480
Ø18.89
Ø480
Ø18.89
Standard turning dia
mm
inch
Ø350
Ø13.77
Ø285
Ø11.22
Maximum turning dia
mm
inch
Ø430
Ø16.92
Ø420
Ø16.53
Max. turning length
mm
inch
1130
44.48
1130
44.48
Main Spindle
Max speed
rpm
3500
3500
Nose (chuck)
inch
A2-8 (10")
A2-8 (10")
Bar capacity
mm
inch
Ø75
Ø2.95
Ø75
Ø2.95
Turret
NO. of tools (live)
T
10
12
Shank size
mm
□25
□25
Tailstock
Quill taper
M.T. #5
M.T. #5
Machine
Weight
kg
lb
6650
14660.72
6750
14881.18
