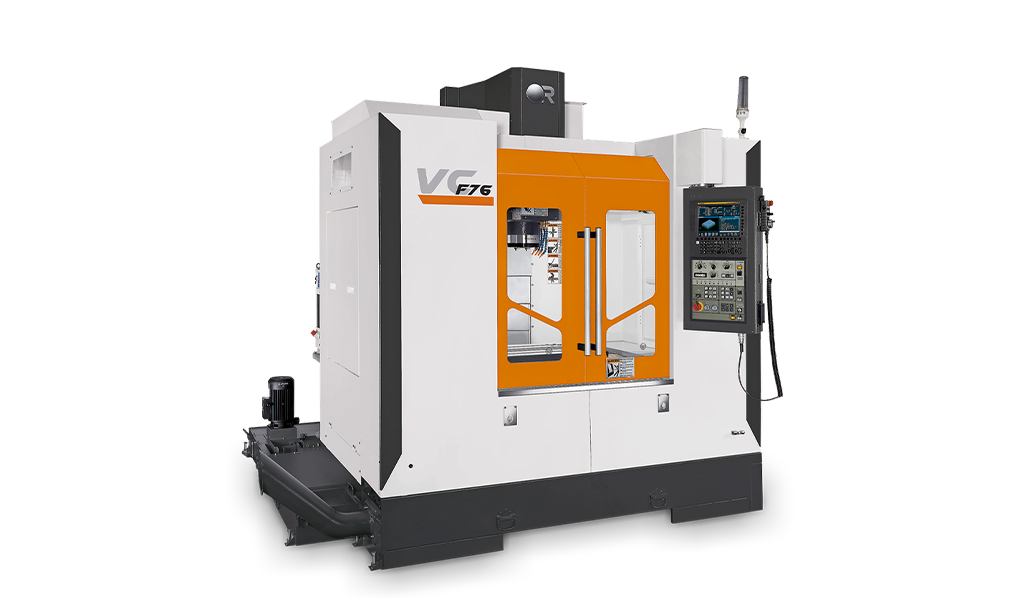

Vcenter-F76
Vertical Machining Centers Vcenter-F Series
Specifications
| Travel | ||
|---|---|---|
| X axis | mm inch | 760 29.92 |
| Y axis | mm inch | 500 19.68 |
| Z axis | mm inch | 510 20.07 |
| Table | ||
|---|---|---|
| Work area | mm inch | 840 x 500 33.07 x 19.68 |
| T-slot | mm | 4 x 18 x 100 |
| Max load | kg lb | 500 1102.30 |
| Spindle | ||
|---|---|---|
| Quill taper | BT-40 | |
| Motor power | KW HP | 11 / 15 15 / 20 |
| Max speed | 8000 | |
| Tools | ||
|---|---|---|
| Capacity | 24 | |
| Max wight | kg lb | 7 15.43 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 5260 11596.30 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | 6001 ~ 10000 | |
| Mc table work area (mm) | < 1000 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
760
29.92
760
29.92
Y axis
mm
inch
500
19.68
500
19.68
Z axis
mm
inch
510
20.07
510
20.07
Table
Work area
mm
inch
840 x 500
33.07 x 19.68
840 x 500
33.07 x 19.68
T-slot
mm
4 x 18 x 100
4 x 18 x 100
Max load
kg
lb
500
1102.30
500
1102.30
Spindle
Quill taper
BT-40
BT-40
Motor power
KW
HP
11 / 15
15 / 20
11 / 15
15 / 20
Max speed
rpm
8000
8000
Tools
Capacity
T
24
24
Max wight
kg
lb
7
15.43
7
15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
5260
11596.30
5260
11596.30
