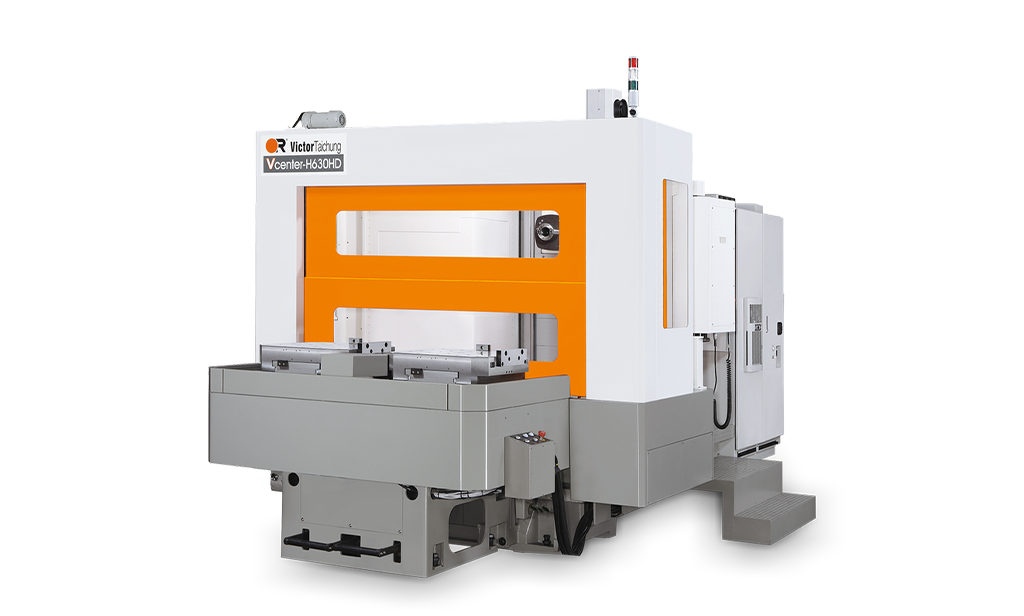

Vcenter-H630HD
Horizontal Machining Centers Vcenter-H Series
Specifications
| Travel | ||
|---|---|---|
| X axis | mm inch | 900 35.43 |
| Y axis | mm inch | 800 31.49 |
| Z axis | mm inch | 710 27.95 |
| B axis | 0 ~ 360 | |
| Table | ||
|---|---|---|
| Work area | mm inch | 630 x 630 24.8 x 24.8 |
| Surface configuration | mm | M16 x P2.0 |
| Max load | kg lb | 1200 2645.54 |
| Pallet exchange time | 41 (C-C) | |
| Spindle | ||
|---|---|---|
| Quill taper | BT-50 | |
| Motor power | KW HP | 15 / 18.5 20 / 25 |
| Max speed | 4500 | |
| Tools | ||
|---|---|---|
| Capacity | 60 | |
| Max wight | kg lb | 25 55.11 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 18000 39683.15 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | < 6000 | |
| Mc table work area (mm) | < 1000 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
900
35.43
900
35.43
Y axis
mm
inch
800
31.49
800
31.49
Z axis
mm
inch
710
27.95
710
27.95
B axis
0 ~ 360
0 ~ 360
Table
Work area
mm
inch
630 x 630
24.8 x 24.8
630 x 630
24.8 x 24.8
Surface configuration
mm
M16 x P2.0
M16 x P2.0
Max load
kg
lb
1200
2645.54
1200
2645.54
Pallet exchange time
41 (C-C)
41 (C-C)
Spindle
Quill taper
BT-50
BT-50
Motor power
KW
HP
15 / 18.5
20 / 25
15 / 18.5
20 / 25
Max speed
rpm
4500
4500
Tools
Capacity
T
60
60
Max wight
kg
lb
25
55.11
25
55.11
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
18000
39683.15
18000
39683.15
