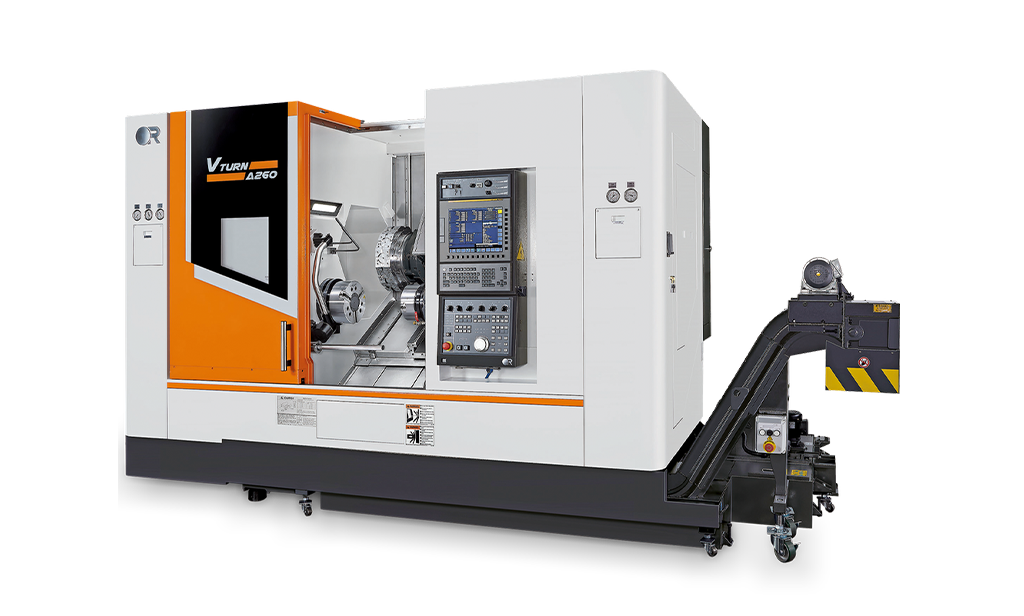

Vturn-A260/75
Horizontal Turning Center Vturn-A Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø770 Ø30.31 |
| Standard turning dia | mm inch | Ø358 Ø14.09 |
| Maximum turning dia | mm inch | Ø420 Ø16.53 |
| Max. turning length | mm inch | 750 29.52 |
| Main Spindle | ||
|---|---|---|
| Max speed | 3500 | |
| Nose (chuck) | A2-8 (10") | |
| Bar capacity | mm inch | Ø75 Ø2.95 |
| Sub Spindle | ||
|---|---|---|
| Max speed | － | |
| Nose (chuck) | － | |
| Bar capacity | mm inch | － － |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 12 | |
| Shank size | □25 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #5 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 6800 14991.41 |
| Uncategorized | ||
|---|---|---|
| Items | SM | |
| Type | MILLING | SUB-SPINDLE | |
| Lc maximun turning dia (mm) | 351 ~ 550 | |
| Lc between centers (mm) | < 800 | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø620
Ø24.4
Ø770
Ø30.31
Ø770
Ø30.31
Ø770
Ø30.31
Ø770
Ø30.31
Standard turning dia
mm
inch
Ø358
Ø14.09
Ø358
Ø14.09
Ø358
Ø14.09
Ø358
Ø14.09
Ø358
Ø14.09
Maximum turning dia
mm
inch
Ø480
Ø18.89
Ø420
Ø16.53
Ø420
Ø16.53
Ø420
Ø16.53
Ø420
Ø16.53
Max. turning length
mm
inch
950
37.40
910
35.82
910
35.82
950
37.40
950
37.40
Main Spindle
Max speed
rpm
3500
3500
3500
3500
3500
Nose (chuck)
inch
A2-8 (10")
A2-8 (10")
A2-8 (10")
A2-8 (10")
A2-8 (10")
Bar capacity
mm
inch
Ø75
Ø2.95
Ø75
Ø2.95
Ø75
Ø2.95
Ø75
Ø2.95
Ø75
Ø2.95
Sub Spindle
Max speed
rpm
5000
－
5000
－
5000
Nose (chuck)
inch
A2-6 (8")
－
A2-6 (8")
－
A2-6 (8")
Bar capacity
mm
inch
Ø52
Ø2.04
－
－
Ø52
Ø2.04
－
－
Ø52
Ø2.04
Turret
NO. of tools (live)
T
12
12
12
12
12
Shank size
mm
□20
□25
□25
□25
□25
Tailstock
Quill taper
－
M.T. #5
－
M.T. #5
－
Machine
Weight
kg
lb
6700
14770.95
6500
14330.02
6700
14770.95
7300
16093.72
7500
16534.64
