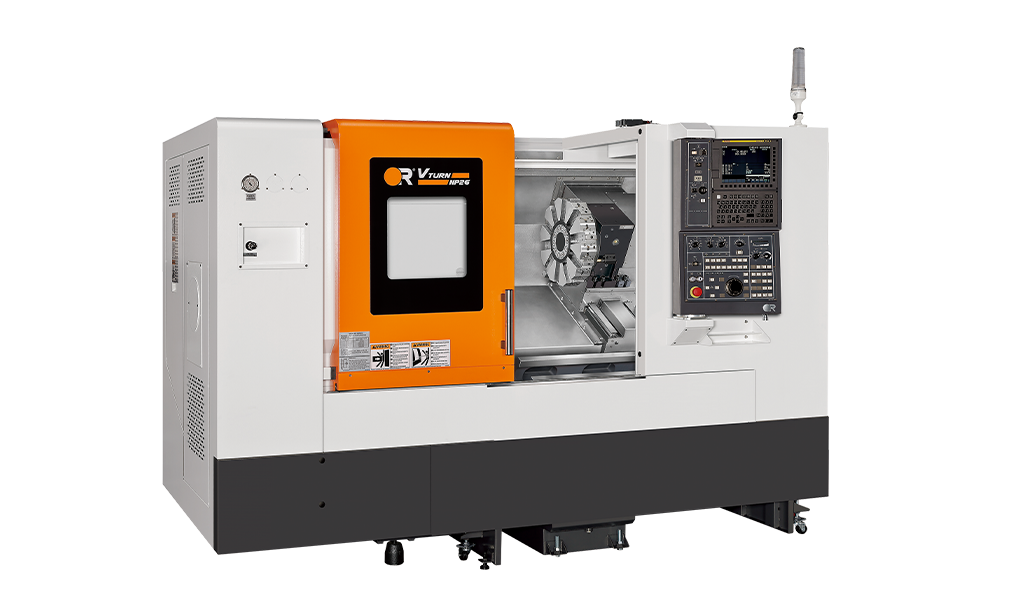

Vturn-NP26
Horizontal Turning Lathe Vturn-NP Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | 540 21.25 |
| Standard turning dia | mm inch | 271 10.66 |
| Maximum turning dia | mm inch | 450 17.71 |
| Max. turning length | mm inch | 640 25.19 |
| Main Spindle | ||
|---|---|---|
| Max speed | 3500 | |
| Nose (chuck) | A2-8 (10") | |
| Bar capacity | mm inch | 75 2.95 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 10 | |
| Shank size | □25 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #5 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 5200 11464.02 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Type | NO MILLING | MILLING | |
| Lc maximun turning dia (mm) | < 350 | |
| Lc between centers (mm) | < 800 | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
540
21.25
540
21.25
Standard turning dia
mm
inch
271
10.66
266
10.47
Maximum turning dia
mm
inch
450
17.71
440
17.32
Max. turning length
mm
inch
640
25.19
640
25.19
Main Spindle
Max speed
rpm
3500
3500
Nose (chuck)
inch
A2-8 (10")
A2-8 (10")
Bar capacity
mm
inch
75
2.95
75
2.95
Turret
NO. of tools (live)
T
10
12
Shank size
mm
□25
□25
Tailstock
Quill taper
M.T. #5
M.T. #5
Machine
Weight
kg
lb
5200
11464.02
5300
11684.48
