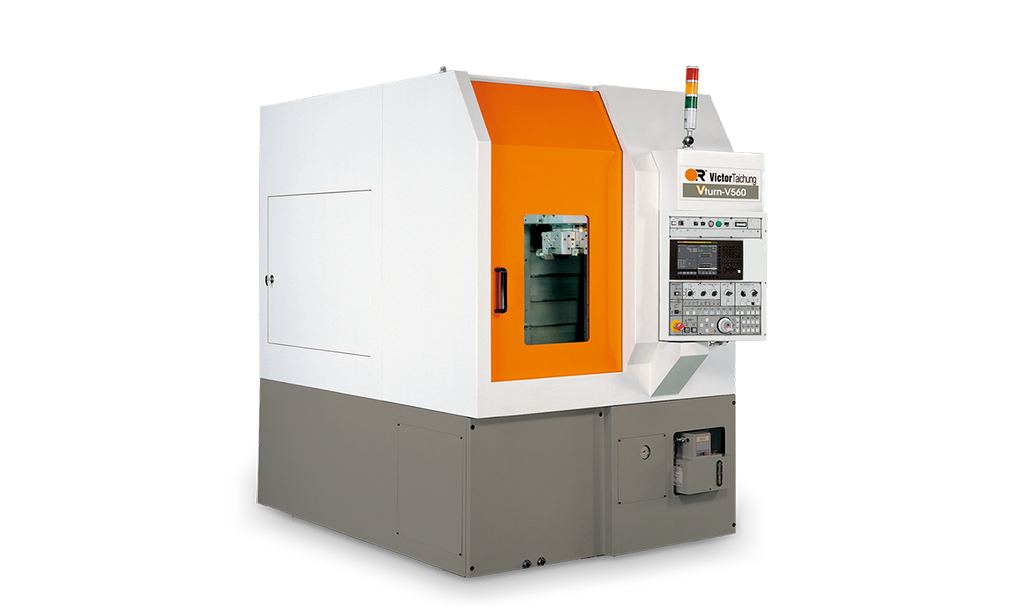

Vturn-V560
V560 (2 Axis)
Vertical Turning Lathes Vturn-V Series
Specifications
V560 (2 Axis)
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø21.25 Ø540 |
| Standard turning dia | mm inch | Ø18.5 Ø470 |
| Maximum turning dia | mm inch | Ø22.04 Ø560 |
| Max. turning length | mm inch | 20.94 532 |
| Main Spindle | ||
|---|---|---|
| Max speed | 2500 | |
| Nose (chuck) | A2-8 (12") | |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 8 | |
| Shank size | □32 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 13448.18 6100 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Lc maximun turning dia (mm) | 551 < | |
| Lc between centers (mm) | < 800 | |
| Type | NO MILLING | MILLING | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø540
Ø21.25
Ø540
Ø21.25
Standard turning dia
mm
inch
Ø470
Ø18.5
Ø520
Ø20.47
Maximum turning dia
mm
inch
Ø560
Ø22.04
Ø610
Ø24.01
Max. turning length
mm
inch
532
20.94
470
18.50
Main Spindle
Max speed
rpm
2500
2500
Nose (chuck)
inch
A2-8 (12")
A2-8 (12")
Turret
NO. of tools (live)
T
8
12
Shank size
mm
□32
□25
Machine
Weight
kg
lb
6100
13448.18
6100
13448.18
