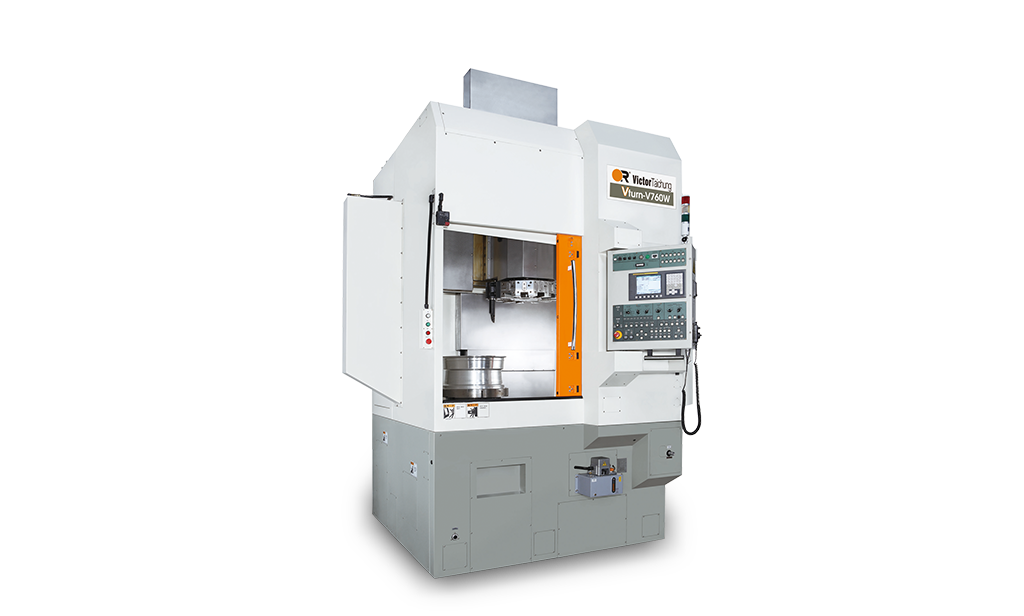

Vturn-V26WT2
V26WT2
Alloy Wheel Lathe Series
Specifications
V26WT2
| Capacity | ||
|---|---|---|
| Max. wheel size | 26.5 x 13J | |
| Maximum turning dia | mm inch | Ø33.46 Ø850 |
| Axis Travel | ||
|---|---|---|
| X axis | mm inch | 22.04 (0 ~ +22.04) 560 (0 ~ +560) |
| Z axis | mm inch | 21.25 (0 ~ +21.25) 540 (0 ~ +540) |
| Main Spindle | ||
|---|---|---|
| Max speed | 2000 | |
| Nose (chuck) | A2-11 | |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 6+6 | |
| Shank size | VDI-50 (□32) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 32474.05 14730 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
Specifications
Add to
Compare
Items
Unit
Capacity
Max. wheel size
inch
26.5 x 13J
Maximum turning dia
mm
inch
Ø850
Ø33.46
Axis Travel
X axis
mm
inch
560 (0 ~ +560)
22.04 (0 ~ +22.04)
Z axis
mm
inch
540 (0 ~ +540)
21.25 (0 ~ +21.25)
Main Spindle
Max speed
rpm
2000
Nose (chuck)
inch
A2-11
Turret
NO. of tools (live)
T
6+6
Shank size
mm
VDI-50 (□32)
Machine
Weight
kg
lb
14730
32474.05
