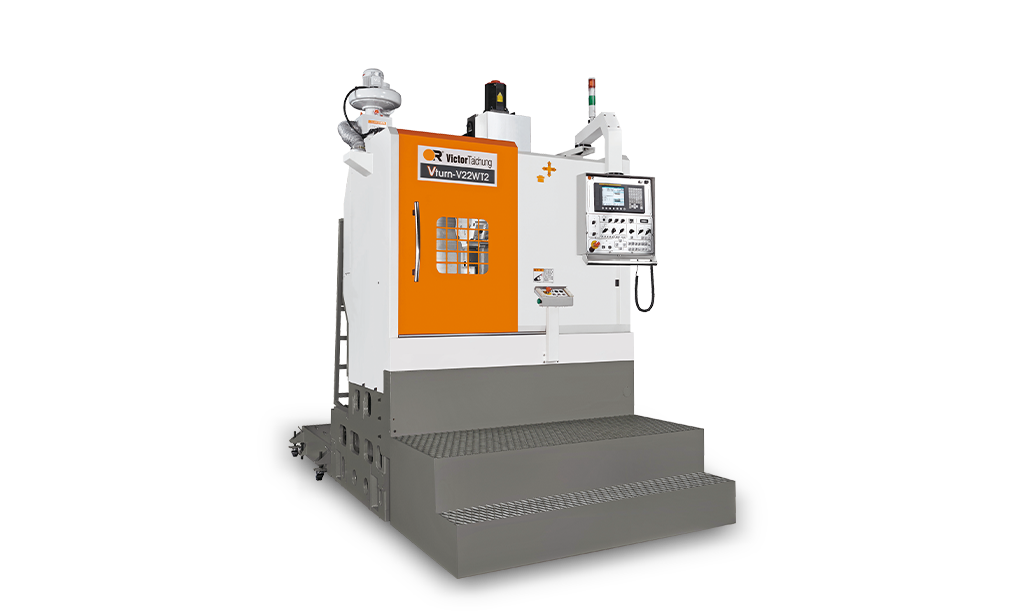

Vturn-V22WT2
Alloy Wheel Lathe Series
Specifications
| Capacity | ||
|---|---|---|
| Max. wheel size | 22.5 x 10.5J | |
| Maximum turning dia | mm inch | Ø750 Ø29.52 |
| Axis Travel | ||
|---|---|---|
| X axis | mm inch | 420 (0 ~ +420) 16.53 (0 ~ +16.53) |
| Z axis | mm inch | 446 (0 ~ +446) 17.55 (0 ~ +17.55) |
| Main Spindle | ||
|---|---|---|
| Max speed | 2500 | |
| Nose (chuck) | A2-13 | |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 6+6 | |
| Shank size | VDI-40(□32) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 11000 24250.81 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
Specifications
Add to
Compare
Items
Unit
Capacity
Max. wheel size
inch
22.5 x 10.5J
Maximum turning dia
mm
inch
Ø750
Ø29.52
Axis Travel
X axis
mm
inch
420 (0 ~ +420)
16.53 (0 ~ +16.53)
Z axis
mm
inch
446 (0 ~ +446)
17.55 (0 ~ +17.55)
Main Spindle
Max speed
rpm
2500
Nose (chuck)
inch
A2-13
Turret
NO. of tools (live)
T
6+6
Shank size
mm
VDI-40(□32)
Machine
Weight
kg
lb
11000
24250.81
