Specifications

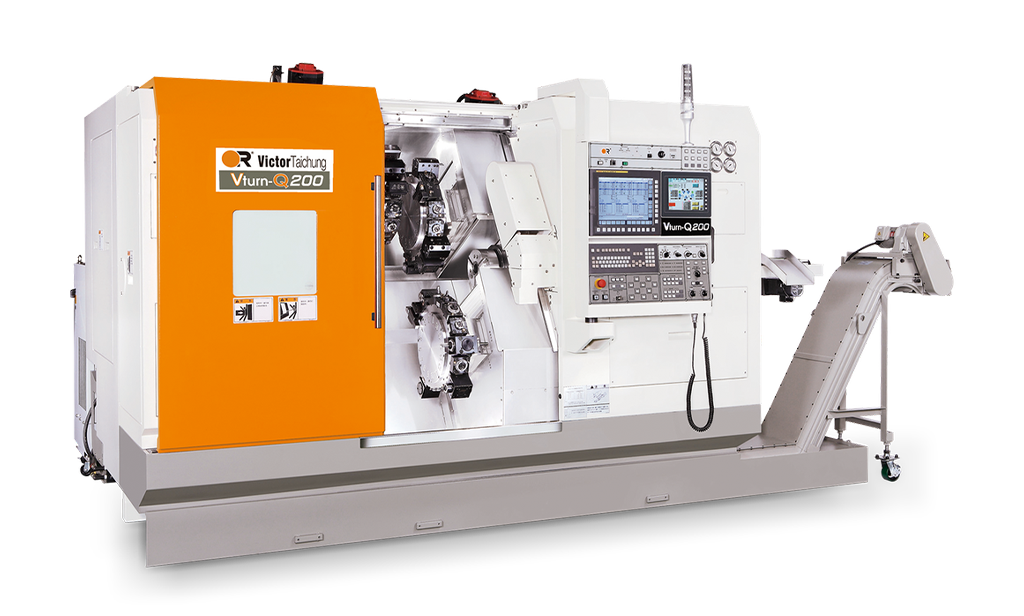

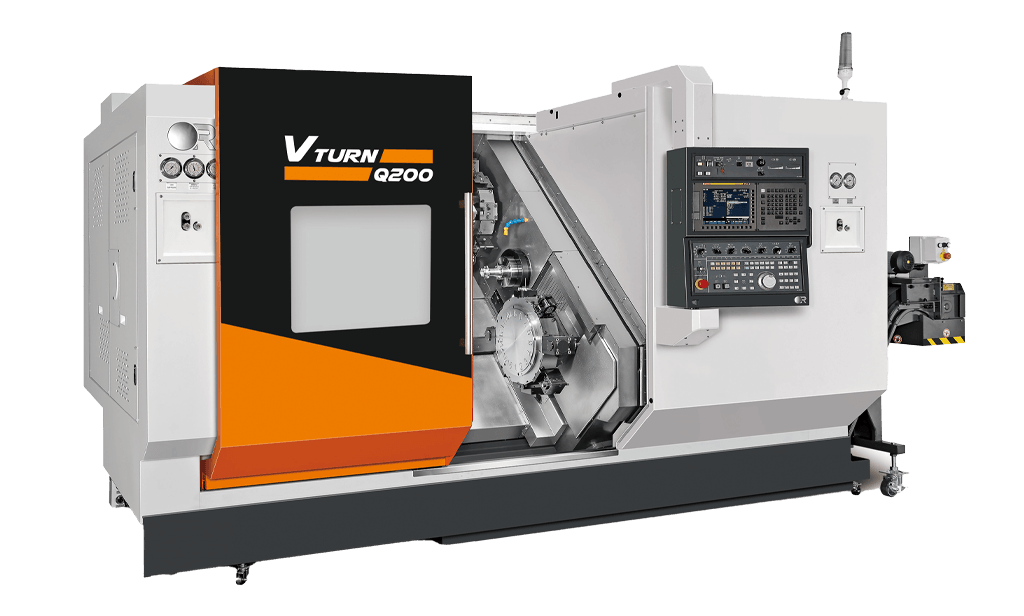

Q200 (T2Y2)
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø12.99 Ø330 |
| Maximum turning dia | mm inch | Ø9.76 Ø248 |
| Max. turning length | mm inch | 33.46 850 |
| Axis Travel |
|---|
| Main Spindle | ||
|---|---|---|
| Max speed | 5000 | |
| Nose (chuck) | A2-6 (8") | |
| Bar capacity | mm inch | Ø2.04 Ø52 |
| Sub Spindle | ||
|---|---|---|
| Max speed | 5000 | |
| Nose (chuck) | A2-6 (8") | |
| Bar capacity | mm inch | Ø2.04 Ø52 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 16 | |
| Shank size | □20 | |
| Milling speed | 6000 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 21076.16 9560 |
| Uncategorized | ||
|---|---|---|
| Items | T2Y2 | |
| Lc maximun turning dia (mm) | < 350 | |
| Lc between centers (mm) | < 800 | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø330
Ø12.99
Ø330
Ø12.99
Maximum turning dia
mm
inch
Ø248
Ø9.76
Ø248
Ø9.76
Max. turning length
mm
inch
850
33.46
850
33.46
Main Spindle
Max speed
rpm
5000
5000
Nose (chuck)
inch
A2-6 (8")
A2-6 (8")
Bar capacity
mm
inch
Ø52
Ø2.04
Ø52
Ø2.04
Sub Spindle
Max speed
rpm
5000
5000
Nose (chuck)
inch
A2-6 (8")
A2-6 (8")
Bar capacity
mm
inch
Ø52
Ø2.04
Ø52
Ø2.04
Turret
NO. of tools (live)
T
16
16
Shank size
mm
□20
□20
Milling speed
6000
6000
Machine
Weight
kg
lb
9560
21076.16
11200
24691.74
