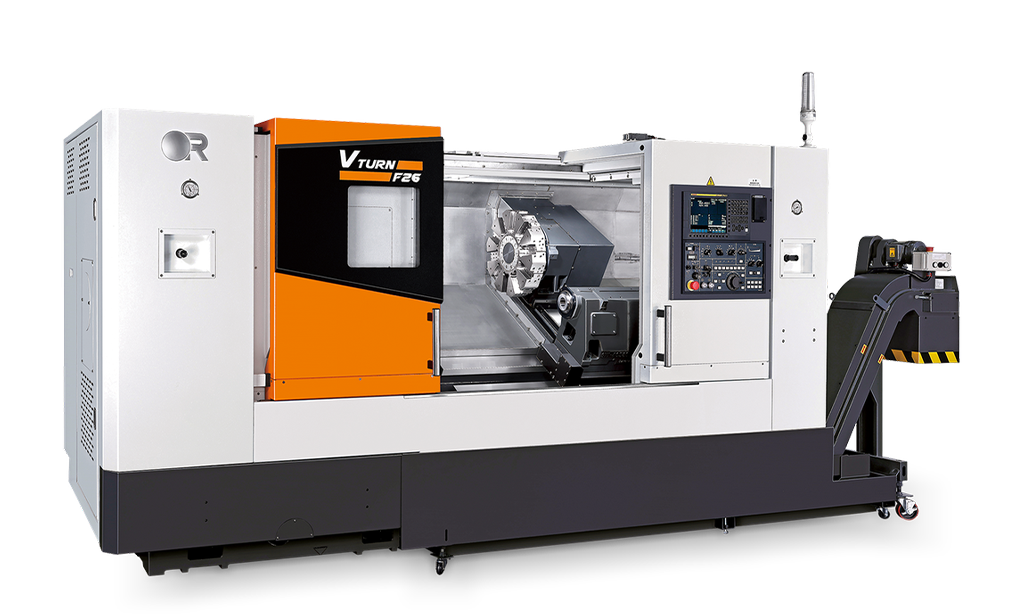

Vturn-F26/60
F26/60
CNC Horizontal Lathe Vturn-F Series
Specifications
F26/60
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø18.89 Ø480 |
| Standard turning dia | mm inch | Ø13.77 Ø350 |
| Maximum turning dia | mm inch | Ø16.92 Ø430 |
| Max. turning length | mm inch | 25.19 640 |
| Main Spindle | ||
|---|---|---|
| Max speed | 3500 | |
| Nose (chuck) | A2-8 (10") | |
| Bar capacity | mm inch | Ø2.95 Ø75 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 10 | |
| Shank size | □25 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #5 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 12456.10 5650 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Lc maximun turning dia (mm) | 351 ~ 550 | |
| Lc between centers (mm) | < 800 | |
| Type | NO MILLING | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø480
Ø18.89
Standard turning dia
mm
inch
Ø350
Ø13.77
Maximum turning dia
mm
inch
Ø430
Ø16.92
Max. turning length
mm
inch
640
25.19
Main Spindle
Max speed
rpm
3500
Nose (chuck)
inch
A2-8 (10")
Bar capacity
mm
inch
Ø75
Ø2.95
Turret
NO. of tools (live)
T
10
Shank size
mm
□25
Tailstock
Quill taper
M.T. #5
Machine
Weight
kg
lb
5650
12456.10
