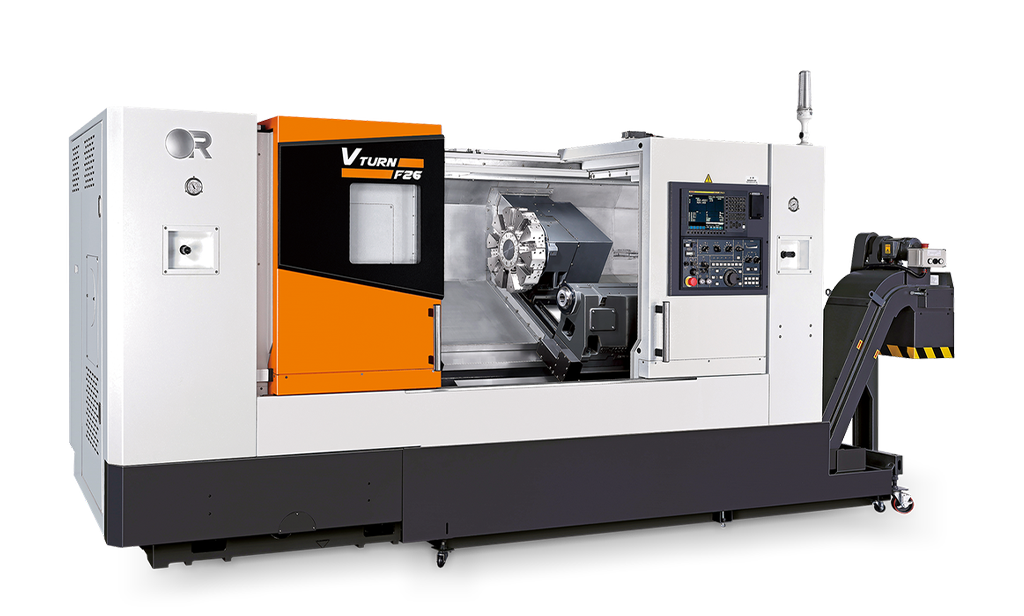

Vturn-F26/110
CNC Horizontal Lathe Vturn-F Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø480 Ø18.89 |
| Standard turning dia | mm inch | Ø350 Ø13.77 |
| Maximum turning dia | mm inch | Ø430 Ø16.92 |
| Max. turning length | mm inch | 1130 44.48 |
| Main Spindle | ||
|---|---|---|
| Max speed | 3500 | |
| Nose (chuck) | A2-8 (10") | |
| Bar capacity | mm inch | Ø75 Ø2.95 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 10 | |
| Shank size | □25 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #5 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 6250 13778.87 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Lc maximun turning dia (mm) | 351 ~ 550 | |
| Lc between centers (mm) | 801 ~ 1500 | |
| Type | NO MILLING | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø480
Ø18.89
Standard turning dia
mm
inch
Ø350
Ø13.77
Maximum turning dia
mm
inch
Ø430
Ø16.92
Max. turning length
mm
inch
1130
44.48
Main Spindle
Max speed
rpm
3500
Nose (chuck)
inch
A2-8 (10")
Bar capacity
mm
inch
Ø75
Ø2.95
Turret
NO. of tools (live)
T
10
Shank size
mm
□25
Tailstock
Quill taper
M.T. #5
Machine
Weight
kg
lb
6250
13778.87
