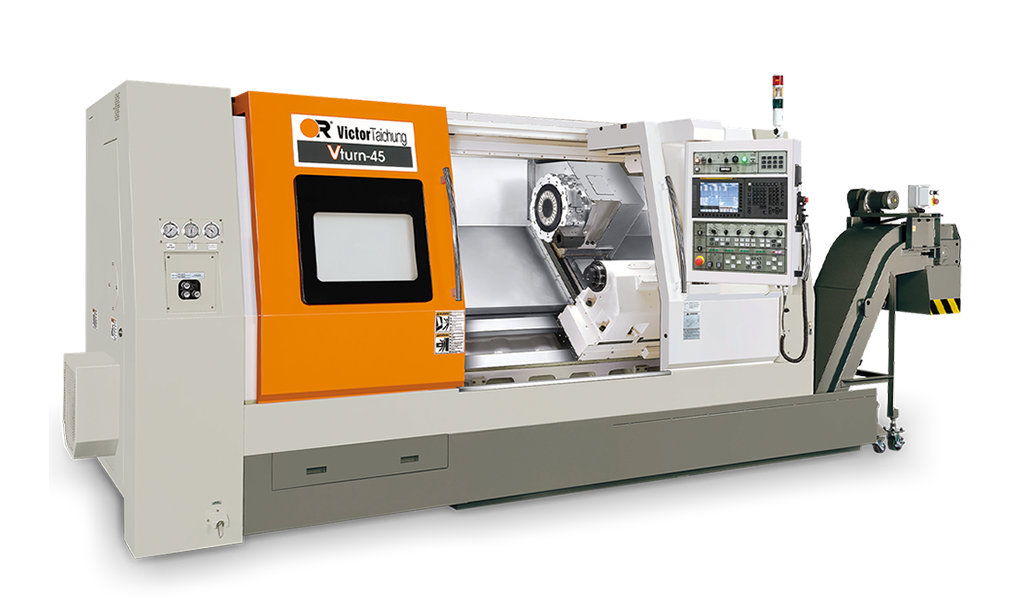

Vturn-45/220
CNC Turning Machine Vturn-40/45/46
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø620 Ø24.4 |
| Standard turning dia | mm inch | Ø520 Ø20.47 |
| Maximum turning dia | mm inch | Ø620 Ø24.4 |
| Max. turning length | mm inch | 2275 89.56 |
| Main Spindle | ||
|---|---|---|
| Max speed | 2000 | |
| Nose (chuck) | A2-11 (15") | |
| Bar capacity | mm inch | Ø117.5 Ø4.62 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 10 | |
| Shank size | □32 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #5 (live) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 15500 34171.60 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Lc maximun turning dia (mm) | 351 ~ 550 | 551 < | |
| Type | NO MILLING | MILLING | |
| Lc between centers (mm) | 1501 < | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø620
Ø24.4
Ø620
Ø24.4
Ø620
Ø24.4
Standard turning dia
mm
inch
Ø520
Ø20.47
Ø492
Ø19.37
Ø432
Ø17
Maximum turning dia
mm
inch
Ø620
Ø24.4
Ø580
Ø22.83
Ø520
Ø20.47
Max. turning length
mm
inch
2275
89.56
2275
89.56
2275
89.56
Main Spindle
Max speed
rpm
2000
2000
2000
Nose (chuck)
inch
A2-11 (15")
A2-11 (15")
A2-11 (15")
Bar capacity
mm
inch
Ø117.5
Ø4.62
Ø117.5
Ø4.62
Ø117.5
Ø4.62
Turret
NO. of tools (live)
T
10
12
12
Shank size
mm
□32
□32
□32
Tailstock
Quill taper
M.T. #5 (live)
M.T. #5
M.T. #5
Machine
Weight
kg
lb
15500
34171.60
15600
34392.07
15800
34832.99
