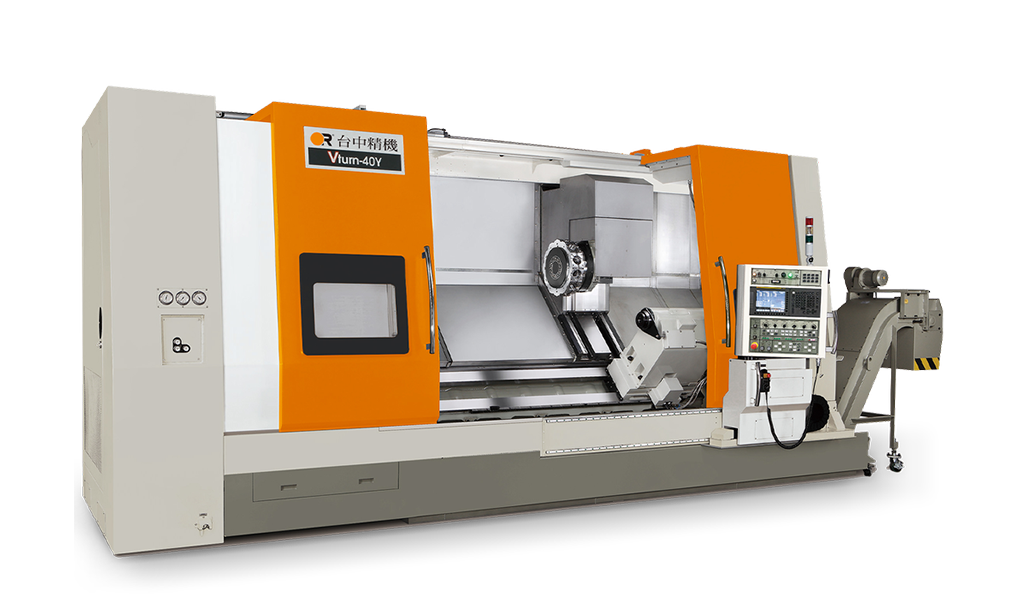

Vturn-40/425
CNC Turning Machine Vturn-40/45/46
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø620 Ø24.4 |
| Standard turning dia | mm inch | Ø520 Ø20.47 |
| Maximum turning dia | mm inch | Ø620 Ø24.4 |
| Max. turning length | mm inch | 4305 169.48 |
| Main Spindle | ||
|---|---|---|
| Max speed | 2500 | |
| Nose (chuck) | A2-11 (15") | |
| Bar capacity | mm inch | Ø91 Ø3.58 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 10 | |
| Shank size | □32 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #5 (live) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 22000 48501.63 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Lc maximun turning dia (mm) | 351 ~ 550 | 551 < | |
| Type | NO MILLING | MILLING | |
| Lc between centers (mm) | 1501 < | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø620
Ø24.4
Ø620
Ø24.4
Ø620
Ø24.4
Standard turning dia
mm
inch
Ø520
Ø20.47
Ø492
Ø19.37
Ø432
Ø17
Maximum turning dia
mm
inch
Ø620
Ø24.4
Ø580
Ø22.83
Ø520
Ø20.47
Max. turning length
mm
inch
4305
169.48
4305
169.48
4305
169.48
Main Spindle
Max speed
rpm
2500
2500
2500
Nose (chuck)
inch
A2-11 (15")
A2-11 (15")
A2-11 (15")
Bar capacity
mm
inch
Ø91
Ø3.58
Ø91
Ø3.58
Ø91
Ø3.58
Turret
NO. of tools (live)
T
10
12
10
Shank size
mm
□32
□32
□32
Tailstock
Quill taper
M.T. #5 (live)
M.T. #5
M.T. #5
Machine
Weight
kg
lb
22000
48501.63
22300
49163.02
22500
49603.94
