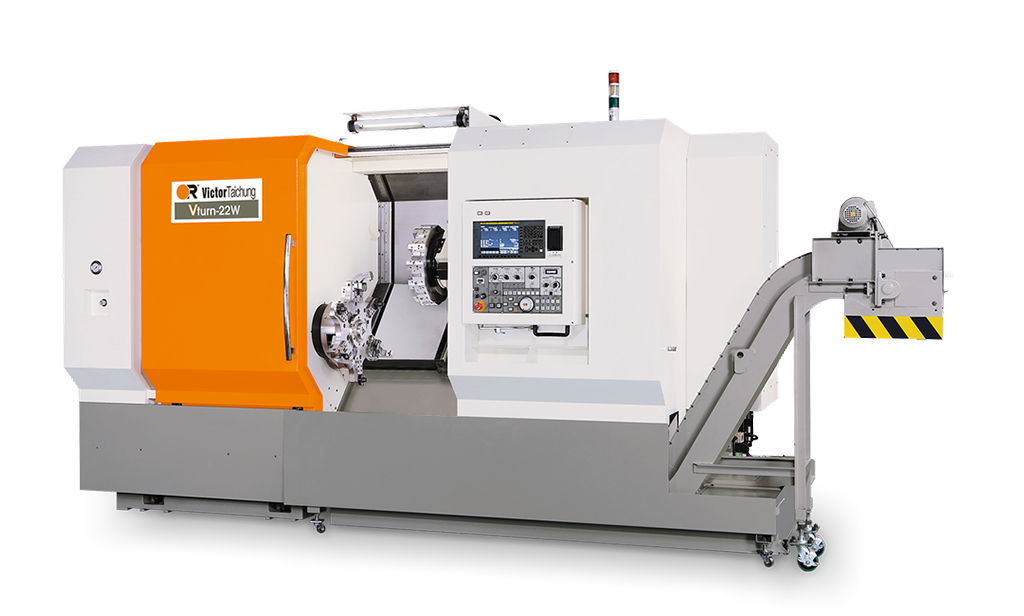

Vturn-22W
Alloy Wheel Lathe Series
Specifications
| Capacity | ||
|---|---|---|
| Max. wheel size | 22 x 10J | |
| Maximum turning dia | mm inch | Ø620 Ø24.4 |
| Axis Travel | ||
|---|---|---|
| X axis | mm inch | 380 (-30 ~ +350) 14.96 (-1.18 ~ +13.77) |
| Z axis | mm inch | 750 (0 ~ +750) 29.52 (0 ~ +29.52) |
| Main Spindle | ||
|---|---|---|
| Max speed | 2000 | |
| Nose (chuck) | A2-8 | |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 12 | |
| Shank size | □32 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 7920 17460.59 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
Specifications
Add to
Compare
Items
Unit
Capacity
Max. wheel size
inch
22 x 10J
Maximum turning dia
mm
inch
Ø620
Ø24.4
Axis Travel
X axis
mm
inch
380 (-30 ~ +350)
14.96 (-1.18 ~ +13.77)
Z axis
mm
inch
750 (0 ~ +750)
29.52 (0 ~ +29.52)
Main Spindle
Max speed
rpm
2000
Nose (chuck)
inch
A2-8
Turret
NO. of tools (live)
T
12
Shank size
mm
□32
Machine
Weight
kg
lb
7920
17460.59
