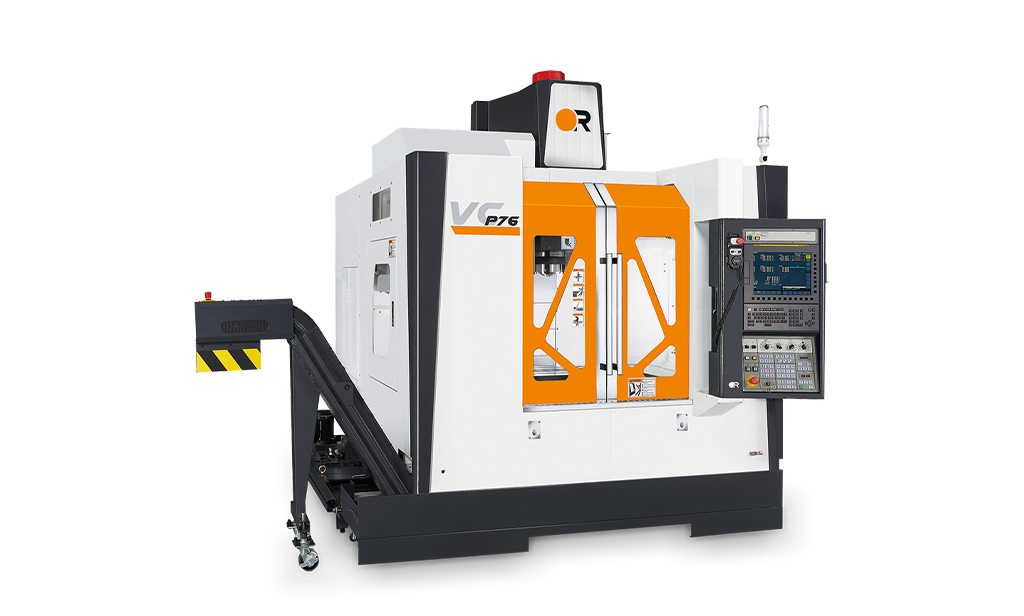

Vcenter-P76APC
High Precision & Performance Machining Centers Vcenter-P Series
Specifications
| Travel | ||
|---|---|---|
| X axis | mm inch | 760 29.92 |
| Y axis | mm inch | 460 18.11 |
| Z axis | mm inch | 540 21.25 |
| Table | ||
|---|---|---|
| Work area | mm inch | 720 x 400 28.34 x 15.74 |
| T-slot | mm | 45-M12 (80 x 80) |
| Max load | kg lb | 200 440.92 |
| Spindle | ||
|---|---|---|
| Quill taper | BBT-40 | |
| Motor power | KW HP | 11 / 15 / 18.5 15 / 20 / 25 |
| Max speed | 12000 | |
| Tools | ||
|---|---|---|
| Capacity | 30 | |
| Max wight | kg lb | 7 15.43 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 6500 14330.02 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | 10001 < | |
| Mc table work area (mm) | < 1000 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
760
29.92
760
29.92
Y axis
mm
inch
460
18.11
460
18.11
Z axis
mm
inch
540
21.25
540
21.25
Table
Work area
mm
inch
720 x 400
28.34 x 15.74
720 x 400
28.34 x 15.74
T-slot
mm
45-M12 (80 x 80)
45-M12 (80 x 80)
Max load
kg
lb
200
440.92
200
440.92
Spindle
Quill taper
BBT-40
BBT-40
Motor power
KW
HP
11 / 15 / 18.5
15 / 20 / 25
7.5 / 11 / 15
10 / 15 / 20
Max speed
rpm
12000
12000
Tools
Capacity
T
30
30
Max wight
kg
lb
7
15.43
7
15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
6500
14330.02
6500
14330.02
