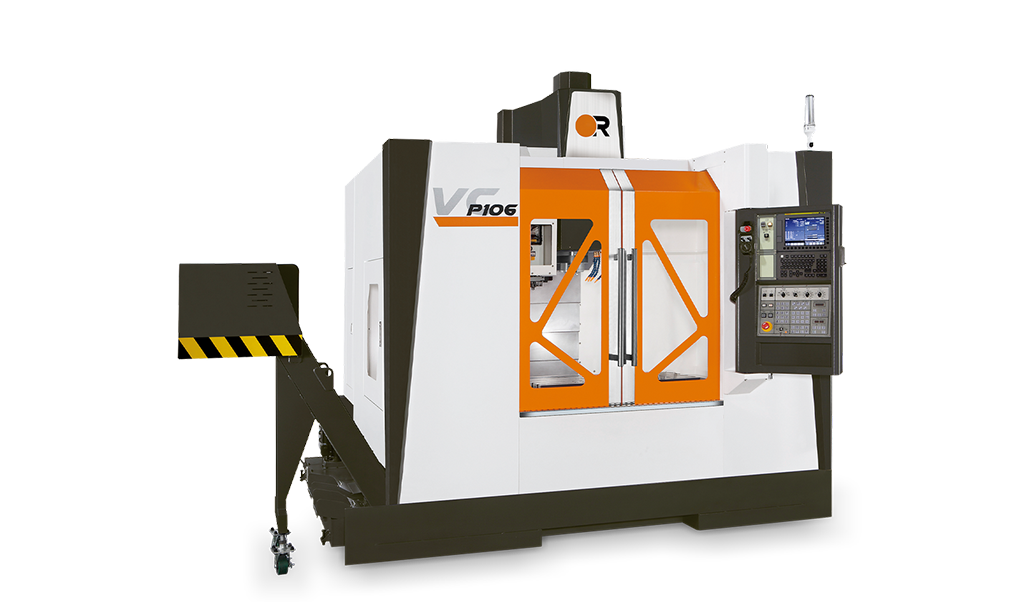

Vcenter-P106
P106 (Non CTS)
High Precision & Performance Machining Centers Vcenter-P Series
Specifications
P106 (Non CTS)
| Travel | ||
|---|---|---|
| X axis | mm inch | 41.73 1060 |
| Y axis | mm inch | 23.62 600 |
| Z axis | mm inch | 22.04 560 |
| Table | ||
|---|---|---|
| Work area | mm inch | 44.09 x 20.47 1120 x 520 |
| T-slot | mm | 5 x 18 x 100 |
| Max load | kg lb | 1322.77 600 |
| Spindle | ||
|---|---|---|
| Quill taper | BBT-40 | |
| Motor power | KW HP | 15 / 20 / 25 11 / 15 / 18.5 |
| Max speed | 12000 | |
| Tools | ||
|---|---|---|
| Capacity | 30 | |
| Max wight | kg lb | 15.43 7 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 14219.79 6450 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | 10001 < | |
| Mc table work area (mm) | 1001 ~ 1200 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
1060
41.73
1060
41.73
Y axis
mm
inch
600
23.62
600
23.62
Z axis
mm
inch
560
22.04
560
22.04
Table
Work area
mm
inch
1120 x 520
44.09 x 20.47
1120 x 520
44.09 x 20.47
T-slot
mm
5 x 18 x 100
5 x 18 x 100
Max load
kg
lb
600
1322.77
600
1322.77
Spindle
Quill taper
BBT-40
BBT-40
Motor power
KW
HP
11 / 15 / 18.5
15 / 20 / 25
7.5 / 11 / 15
10 / 15 / 20
Max speed
rpm
12000
12000
Tools
Capacity
T
30
30
Max wight
kg
lb
7
15.43
7
15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
6450
14219.79
6450
14219.79
