Specifications

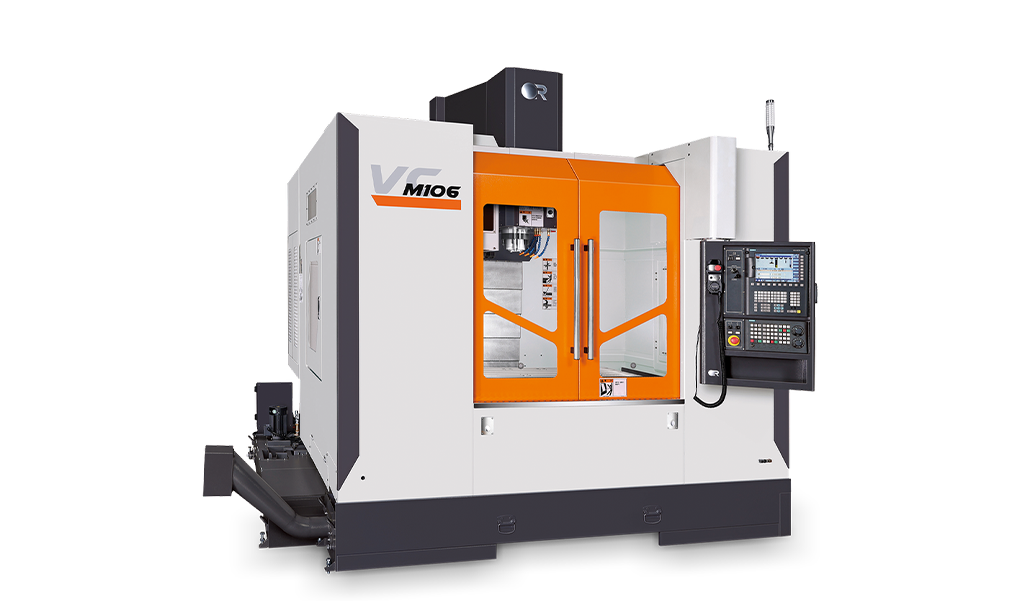

M106
| Travel | ||
|---|---|---|
| X axis | mm inch | 41.73 1060 |
| Y axis | mm inch | 27.55 700 |
| Z axis | mm inch | 27.55 700 |
| Table | ||
|---|---|---|
| Work area | mm inch | 44.09 x 20.47 1120 x 520 |
| T-slot | mm | 5 x 18 x 100 |
| Max load | kg lb | 1543.23 700 |
| Spindle | ||
|---|---|---|
| Quill taper | BBT-40 | |
| Motor power | KW HP | 18 / 22 / 31 13.5 / 16.2 / 23.25 |
| Max speed | 15000 | |
| Tools | ||
|---|---|---|
| Capacity | 24 | |
| Max wight | kg lb | 15.43 7 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 18463.69 8375 |
| Uncategorized | ||
|---|---|---|
| Items | CTS | |
| Mc spindle speed (rpm) | 10001 < | |
| Mc table work area (mm) | 1001 ~ 1200 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
1060
41.73
Y axis
mm
inch
700
27.55
Z axis
mm
inch
700
27.55
Table
Work area
mm
inch
1120 x 520
44.09 x 20.47
T-slot
mm
5 x 18 x 100
Max load
kg
lb
700
1543.23
Spindle
Quill taper
BBT-40
Motor power
KW
HP
13.5 / 16.2 / 23.25
18 / 22 / 31
Max speed
rpm
15000
Tools
Capacity
T
24
Max wight
kg
lb
7
15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
Repeatability
mm
0.007 (±0.0035)
Machine
Weight
kg
lb
8375
18463.69
