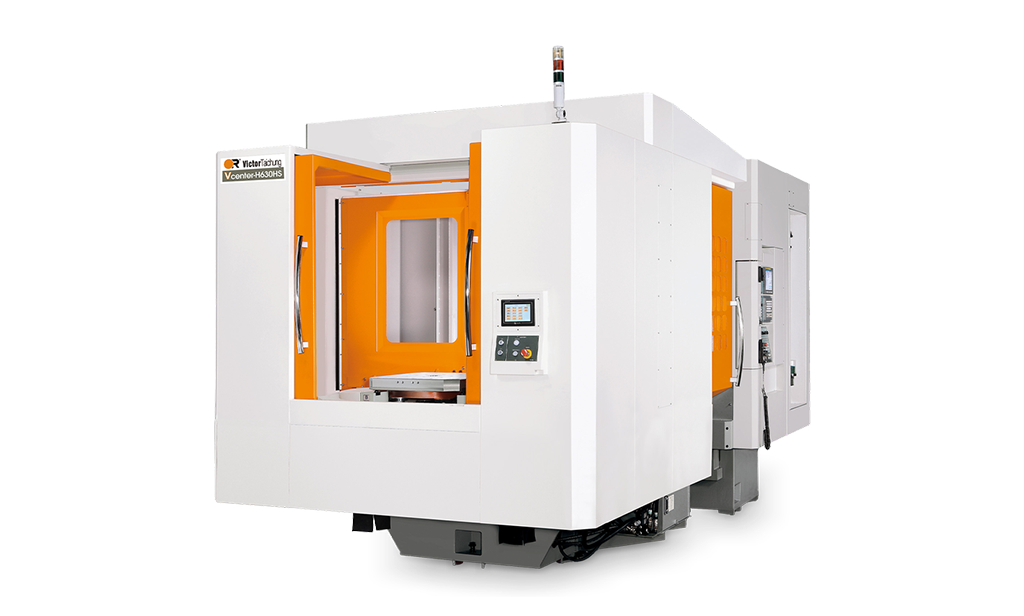

Vcenter-H630HS
H630HS (Non CTS)
Horizontal Machining Centers Vcenter-H Series
Specifications
H630HS (Non CTS)
| Travel | ||
|---|---|---|
| X axis | mm inch | 1000 39.37 |
| Y axis | mm inch | 850 33.46 |
| Z axis | mm inch | 900 35.43 |
| B axis | 0 ~ 360 | |
| Table | ||
|---|---|---|
| Work area | mm inch | 630 x 630 24.8 x 24.8 |
| Surface configuration | mm | M16 x P2.0 |
| Max load | kg lb | 1200 2645.54 |
| Pallet exchange time | 7(P-P), 12(C-C) | |
| Spindle | ||
|---|---|---|
| Quill taper | BT-50 | |
| Motor power | KW HP | 25 / 30 33.5 / 40 |
| Max speed | 10000 | |
| Tools | ||
|---|---|---|
| Capacity | 60 | |
| Max wight | kg lb | 20 44.09 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 18850 41557.08 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | 6001 ~ 10000 | |
| Mc table work area (mm) | < 1000 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
1000
39.37
1000
39.37
Y axis
mm
inch
850
33.46
850
33.46
Z axis
mm
inch
900
35.43
900
35.43
B axis
0 ~ 360
0 ~ 360
Table
Work area
mm
inch
630 x 630
24.8 x 24.8
630 x 630
24.8 x 24.8
Surface configuration
mm
M16 x P2.0
M16 x P2.0
Max load
kg
lb
1200
2645.54
1200
2645.54
Pallet exchange time
7(P-P), 12(C-C)
7(P-P), 12(C-C)
Spindle
Quill taper
BT-50
BT-50
Motor power
KW
HP
25 / 30
33.5 / 40
25 / 30
33.5 / 40
Max speed
rpm
10000
10000
Tools
Capacity
T
60
60
Max wight
kg
lb
20
44.09
20
44.09
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
18850
41557.08
18850
41557.08
