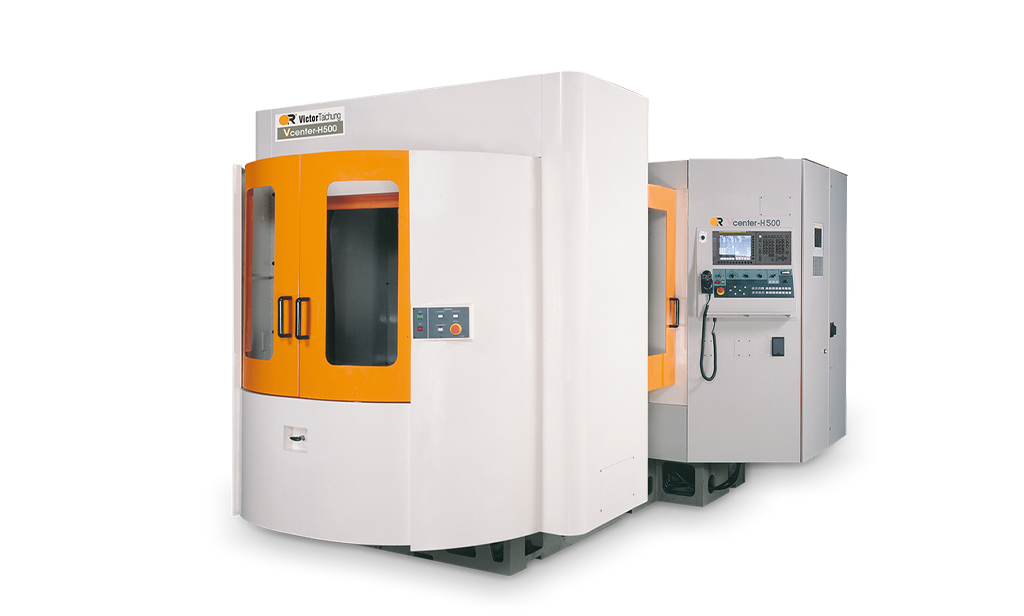

Vcenter-H500
H500 (Non CTS)
Horizontal Machining Centers Vcenter-H Series
Specifications
H500 (Non CTS)
| Travel | ||
|---|---|---|
| X axis | mm inch | 720 28.34 |
| Y axis | mm inch | 650 25.59 |
| Z axis | mm inch | 720 28.34 |
| B axis | 0 ~ 360 | |
| Table | ||
|---|---|---|
| Work area | mm inch | 500 x 500 19.68 x 19.68 |
| Surface configuration | mm | M16 x P2.0 |
| Max load | kg lb | 800 1763.69 |
| Pallet exchange time | 6.5(P-P), 11(C-C) | |
| Spindle | ||
|---|---|---|
| Quill taper | BT-50 | |
| Motor power | KW HP | 11 / 15 15 / 20 |
| Max speed | 6000 | |
| Tools | ||
|---|---|---|
| Capacity | 40 | |
| Max wight | kg lb | 20 44.09 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 12500 27557.74 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | < 6000 | |
| Mc table work area (mm) | < 1000 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
720
28.34
720
28.34
Y axis
mm
inch
650
25.59
650
25.59
Z axis
mm
inch
720
28.34
720
28.34
B axis
0 ~ 360
0 ~ 360
Table
Work area
mm
inch
500 x 500
19.68 x 19.68
500 x 500
19.68 x 19.68
Surface configuration
mm
M16 x P2.0
M16 x P2.0
Max load
kg
lb
800
1763.69
800
1763.69
Pallet exchange time
6.5(P-P), 11(C-C)
6.5(P-P), 11(C-C)
Spindle
Quill taper
BT-50
BT-50
Motor power
KW
HP
11 / 15
15 / 20
11 / 15
15 / 20
Max speed
rpm
6000
6000
Tools
Capacity
T
40
40
Max wight
kg
lb
20
44.09
20
44.09
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
12500
27557.74
12500
27557.74
