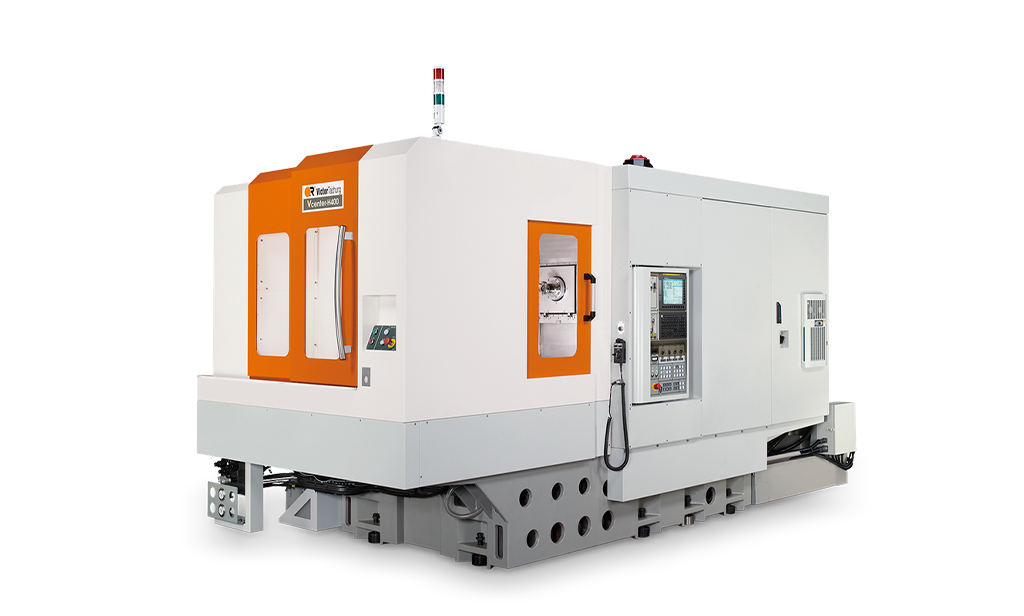

Vcenter-H400
H400 (Non CTS)
Horizontal Machining Centers Vcenter-H Series
Specifications
H400 (Non CTS)
| Travel | ||
|---|---|---|
| X axis | mm inch | 500 19.68 |
| Y axis | mm inch | 600 23.62 |
| Z axis | mm inch | 500 19.68 |
| B axis | 0 ~ 360 | |
| Table | ||
|---|---|---|
| Work area | mm inch | 400 x 400 15.74 x 15.74 |
| Surface configuration | mm | M12 x P1.75 |
| Max load | kg lb | 400 881.84 |
| Pallet exchange time | 7(P-P), 11.4(C-C) | |
| Spindle | ||
|---|---|---|
| Quill taper | BBT-40 | |
| Motor power | KW HP | 18.5 / 22 25 / 29.5 |
| Max speed | 15000 | |
| Tools | ||
|---|---|---|
| Capacity | 60 | |
| Max wight | kg lb | 7 15.43 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 11300 24912.20 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | 10001 < | |
| Mc table work area (mm) | < 1000 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
500
19.68
500
19.68
Y axis
mm
inch
600
23.62
600
23.62
Z axis
mm
inch
500
19.68
500
19.68
B axis
0 ~ 360
0 ~ 360
Table
Work area
mm
inch
400 x 400
15.74 x 15.74
400 x 400
15.74 x 15.74
Surface configuration
mm
M12 x P1.75
M12 x P1.75
Max load
kg
lb
400
881.84
400
881.84
Pallet exchange time
7(P-P), 11.4(C-C)
7(P-P), 11.4(C-C)
Spindle
Quill taper
BBT-40
BBT-40
Motor power
KW
HP
18.5 / 22
25 / 29.5
18.5 / 22
25 / 29.5
Max speed
rpm
15000
15000
Tools
Capacity
T
60
60
Max wight
kg
lb
7
15.43
7
15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
11300
24912.20
11300
24912.20
