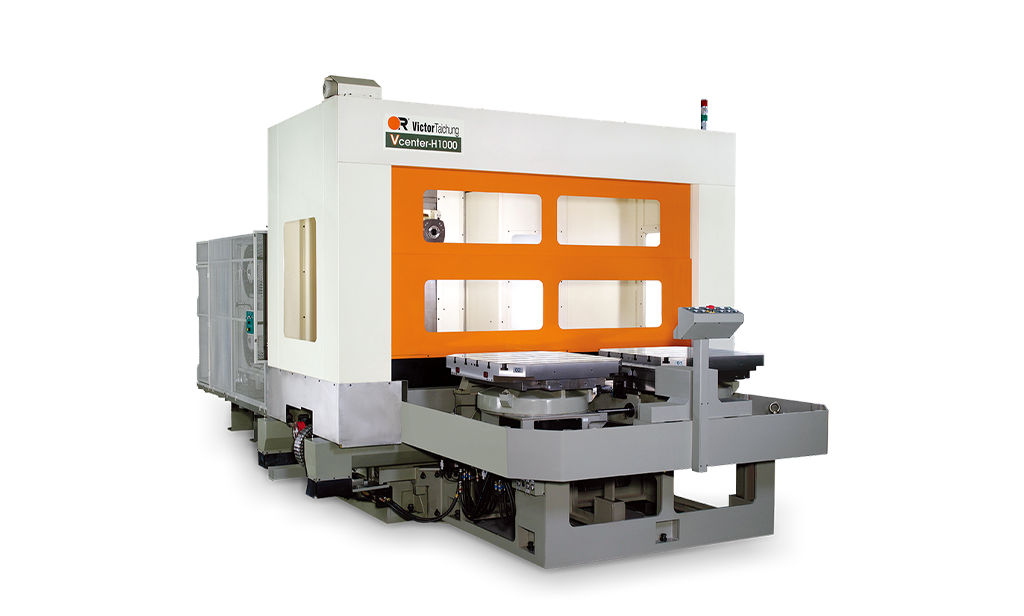

Vcenter-H1000
H1000 (Non CTS)
Horizontal Machining Centers Vcenter-H Series
Specifications
H1000 (Non CTS)
| Travel | ||
|---|---|---|
| X axis | mm inch | 1350 53.14 |
| Y axis | mm inch | 1050 41.33 |
| Z axis | mm inch | 1050 41.33 |
| B axis | 0 ~ 360 | |
| Table | ||
|---|---|---|
| Work area | mm inch | 1000 x 1000 39.37 x 39.37 |
| Surface configuration | mm | M16 x P2.0 |
| Max load | kg lb | 2000 4409.23 |
| Pallet exchange time | 48 (C-C) | |
| Spindle | ||
|---|---|---|
| Quill taper | BT-50 | |
| Motor power | KW HP | 18.5 / 22 25 / 29.5 |
| Max speed | 4500 | |
| Tools | ||
|---|---|---|
| Capacity | 90 | |
| Max wight | kg lb | 25 55.11 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 31420 69269.16 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | < 6000 | |
| Mc table work area (mm) | < 1000 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
1350
53.14
1350
53.14
Y axis
mm
inch
1050
41.33
1050
41.33
Z axis
mm
inch
1050
41.33
1050
41.33
B axis
0 ~ 360
0 ~ 360
Table
Work area
mm
inch
1000 x 1000
39.37 x 39.37
1000 x 1000
39.37 x 39.37
Surface configuration
mm
M16 x P2.0
M16 x P2.0
Max load
kg
lb
2000
4409.23
2000
4409.23
Pallet exchange time
48 (C-C)
48 (C-C)
Spindle
Quill taper
BT-50
BT-50
Motor power
KW
HP
18.5 / 22
25 / 29.5
18.5 / 22
25 / 29.5
Max speed
rpm
4500
4500
Tools
Capacity
T
90
90
Max wight
kg
lb
25
55.11
25
55.11
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
31420
69269.16
31420
69269.16
