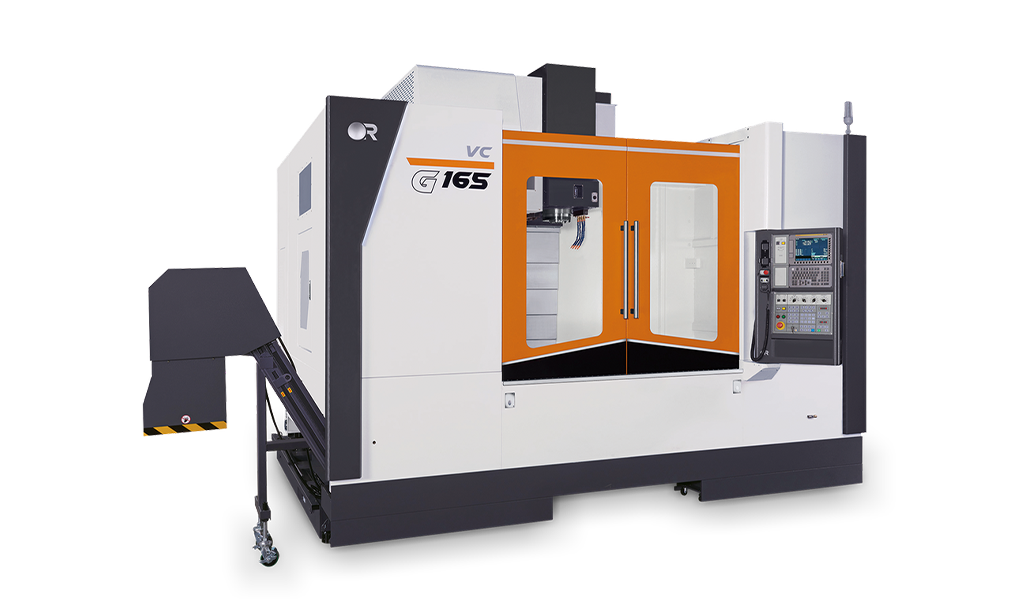

Vcenter-G165
Box Way Machining Center Vcenter-G Series
Specifications
| Travel | ||
|---|---|---|
| X axis | mm inch | 1650 64.96 |
| Y axis | mm inch | 850 33.46 |
| Z axis | mm inch | 900 35.43 |
| Table | ||
|---|---|---|
| Work area | mm inch | 1700 x 800 66.92 x 31.49 |
| T-slot | mm | 5 x 22 x 150 |
| Max load | kg lb | 2500 5511.54 |
| Spindle | ||
|---|---|---|
| Quill taper | BBT-50 | |
| Motor power | KW HP | 15 / 18 20 / 25 |
| Max speed | 6000 | |
| Tools | ||
|---|---|---|
| Capacity | 24 | |
| Max wight | kg lb | 15 33.06 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 16500 36376.22 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | < 6000 | |
| Mc table work area (mm) | 1201 < | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
1650
64.96
1650
64.96
Y axis
mm
inch
850
33.46
850
33.46
Z axis
mm
inch
900
35.43
900
35.43
Table
Work area
mm
inch
1700 x 800
66.92 x 31.49
1700 x 800
66.92 x 31.49
T-slot
mm
5 x 22 x 150
5 x 22 x 150
Max load
kg
lb
2500
5511.54
2500
5511.54
Spindle
Quill taper
BBT-50
BBT-50
Motor power
KW
HP
15 / 18
20 / 25
15 / 18
20 / 25
Max speed
rpm
6000
6000
Tools
Capacity
T
24
24
Max wight
kg
lb
15
33.06
15
33.06
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
16500
36376.22
16500
36376.22
