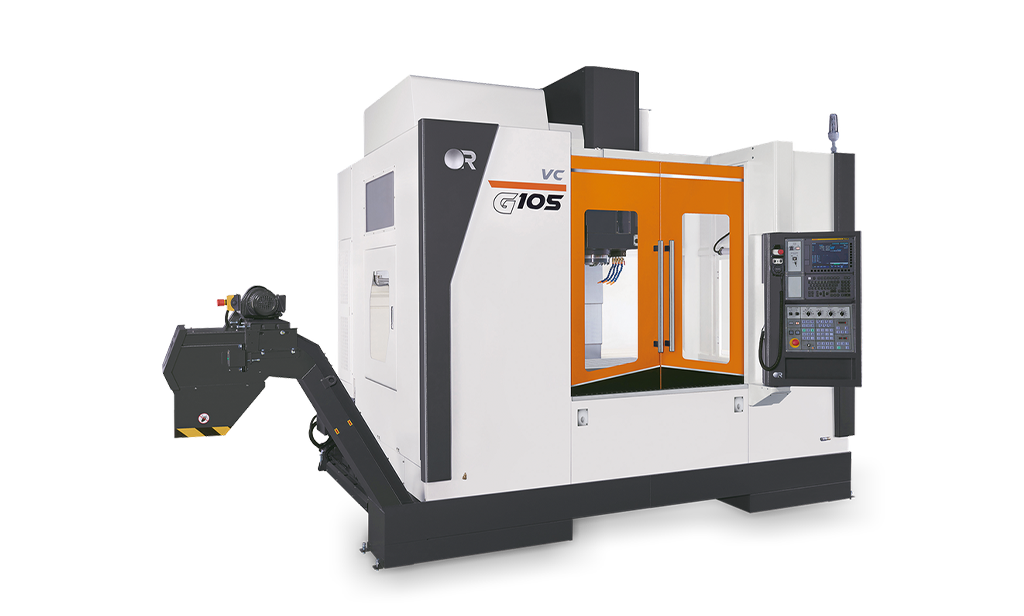

Vcenter-G105
Box Way Machining Center Vcenter-G Series
Specifications
| Travel | ||
|---|---|---|
| X axis | mm inch | 1050 41.33 |
| Y axis | mm inch | 600 23.62 |
| Z axis | mm inch | 600 23.62 |
| Table | ||
|---|---|---|
| Work area | mm inch | 1100 x 600 43.3 x 23.62 |
| T-slot | mm | 7 x 18 x 100 |
| Max load | kg lb | 1200 2645.54 |
| Spindle | ||
|---|---|---|
| Quill taper | BBT-50 | |
| Motor power | KW HP | 15 / 18 20 / 25 |
| Max speed | 6000 | |
| Tools | ||
|---|---|---|
| Capacity | 24 | |
| Max wight | kg lb | 15 33.06 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 10000 22046.19 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc spindle speed (rpm) | < 6000 | |
| Mc table work area (mm) | 1001 ~ 1200 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
1050
41.33
1050
41.33
Y axis
mm
inch
600
23.62
600
23.62
Z axis
mm
inch
600
23.62
600
23.62
Table
Work area
mm
inch
1100 x 600
43.3 x 23.62
1100 x 600
43.3 x 23.62
T-slot
mm
7 x 18 x 100
7 x 18 x 100
Max load
kg
lb
1200
2645.54
1200
2645.54
Spindle
Quill taper
BBT-50
BBT-50
Motor power
KW
HP
15 / 18
20 / 25
15 / 18
20 / 25
Max speed
rpm
6000
6000
Tools
Capacity
T
24
24
Max wight
kg
lb
15
33.06
15
33.06
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
10000
22046.19
10000
22046.19
