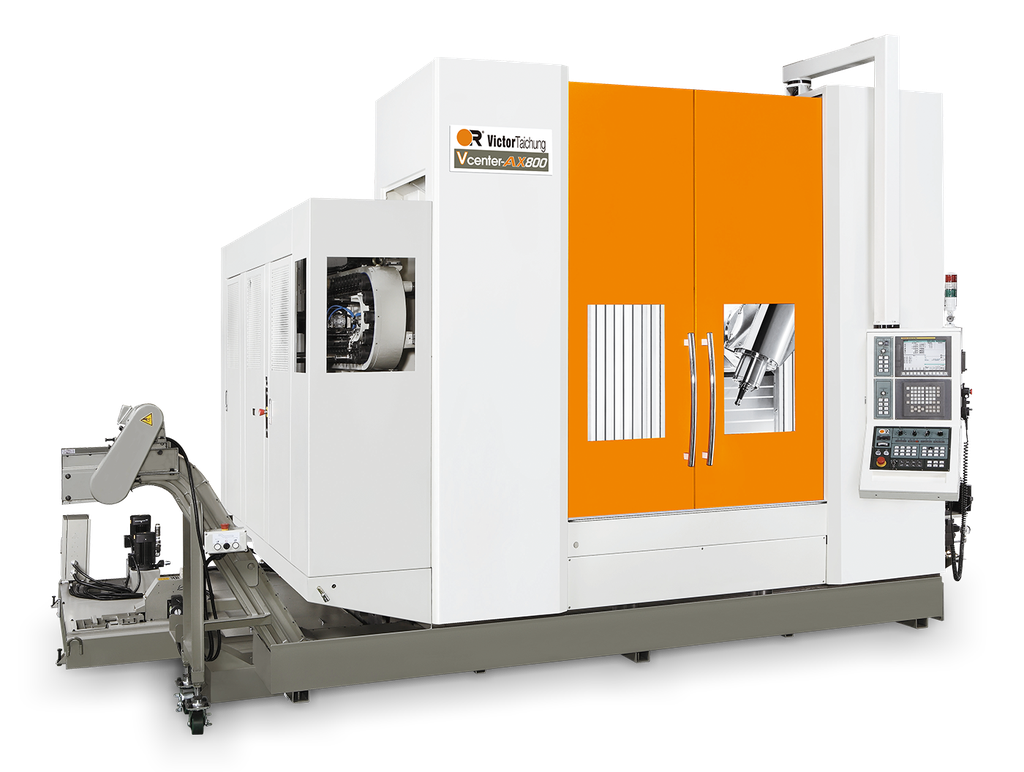

Vcenter-AX800
5-Axis CNC Machining Center Vcenter-AX Series
Specifications
| Travel | ||
|---|---|---|
| X axis | mm inch | 1600 62.99 |
| Y axis | mm inch | 700 27.55 |
| Z axis | mm inch | 600 (V), 1000 (H) 23.62 (V), 39.37 (H) |
| B axis | -30 ~ 110 | |
| C axis | 0 ~ 360 | |
| Table | ||
|---|---|---|
| Work area | mm inch | Ø800 x 1250 Ø31.49 x 49.21 |
| T-slot | mm | 7 x 18H7 x 100 |
| Max load | kg lb | 1200 2645.54 |
| Spindle | ||
|---|---|---|
| Quill taper | BBT-40 | |
| Motor power | KW HP | 15 / 18.5 / 22 20 / 25 / 30 |
| Max speed | 15000 | |
| Tools | ||
|---|---|---|
| Capacity | 40 | |
| Max wight | kg lb | 7 15.43 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 15500 34171.60 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc table work area (mm) | 631 < | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
1600
62.99
1600
62.99
Y axis
mm
inch
700
27.55
700
27.55
Z axis
mm
inch
600 (V), 1000 (H)
23.62 (V), 39.37 (H)
600 (V), 1000 (H)
23.62 (V), 39.37 (H)
B axis
-30 ~ 110
-30 ~ 110
C axis
deg
0 ~ 360
0 ~ 360
Table
Work area
mm
inch
Ø800 x 1250
Ø31.49 x 49.21
Ø800 x 1250
Ø31.49 x 49.21
T-slot
mm
7 x 18H7 x 100
7 x 18H7 x 100
Max load
kg
lb
1200
2645.54
1200
2645.54
Spindle
Quill taper
BBT-40
BBT-40
Motor power
KW
HP
15 / 18.5 / 22
20 / 25 / 30
15 / 18.5 / 22
20 / 25 / 30
Max speed
rpm
15000
15000
Tools
Capacity
T
40
40
Max wight
kg
lb
7
15.43
7
15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
15500
34171.60
15500
34171.60
