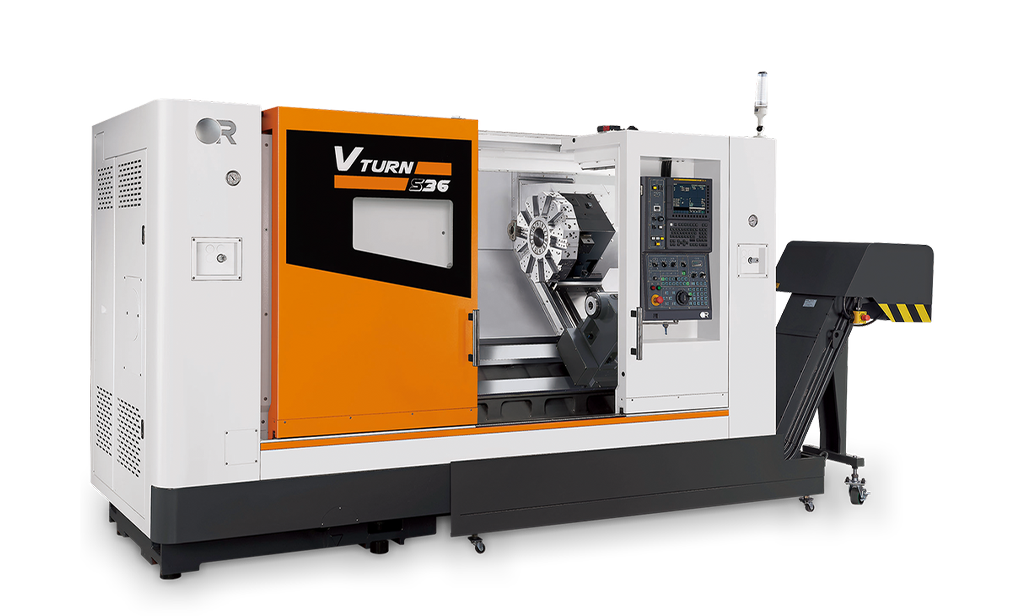

Vturn-S36/85
S36/85 (2 Axis)
3 Axis CNC Turning Machine Vturn-S Series
Specifications
S36/85 (2 Axis)
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø23.62 Ø600 |
| Standard turning dia | mm inch | Ø18.89 Ø480 |
| Maximum turning dia | mm inch | Ø22.83 Ø580 |
| Max. turning length | mm inch | 35.35 898 |
| Main Spindle | ||
|---|---|---|
| Max speed | 2500 | |
| Nose (chuck) | A2-11 (12") | |
| Bar capacity | mm inch | Ø3.58 Ø91 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 10 | |
| Shank size | □32 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #5 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 19841.57 9000 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Lc maximun turning dia (mm) | 551 < | |
| Lc between centers (mm) | 801 ~ 1500 | |
| Type | NO MILLING | MILLING | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø600
Ø23.62
Ø600
Ø23.62
Standard turning dia
mm
inch
Ø480
Ø18.89
Ø452
Ø17.79
Maximum turning dia
mm
inch
Ø580
Ø22.83
Ø580
Ø22.83
Max. turning length
mm
inch
898
35.35
898
35.35
Main Spindle
Max speed
rpm
2500
2500
Nose (chuck)
inch
A2-11 (12")
A2-11 (12")
Bar capacity
mm
inch
Ø91
Ø3.58
Ø91
Ø3.58
Turret
NO. of tools (live)
T
10
12
Shank size
mm
□32
□32
Tailstock
Quill taper
M.T. #5
M.T. #5
Machine
Weight
kg
lb
9000
19841.57
9100
20062.04
