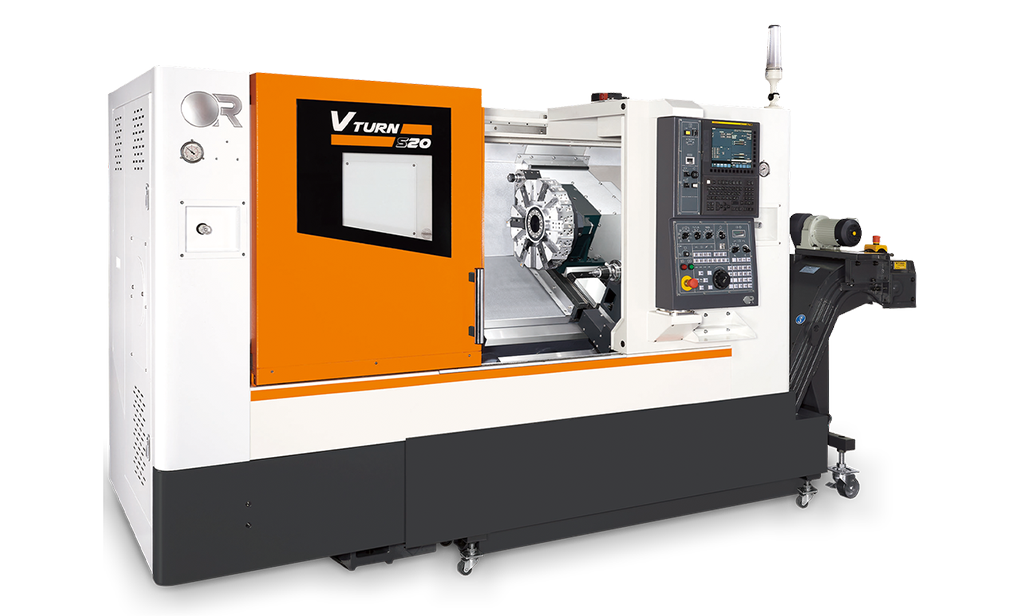

Vturn-S20/40
S20/40 (2 Axis)
3 Axis CNC Turning Machine Vturn-S Series
Specifications
S20/40 (2 Axis)
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø430 Ø16.92 |
| Standard turning dia | mm inch | Ø230 Ø9.05 |
| Maximum turning dia | mm inch | Ø320 Ø12.59 |
| Max. turning length | mm inch | 420 16.53 |
| Main Spindle | ||
|---|---|---|
| Max speed | 4200 | |
| Nose (chuck) | A2-6 (8") | |
| Bar capacity | mm inch | Ø52 Ø2.04 |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 12 | |
| Shank size | □25 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #4 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 4500 9920.78 |
| Uncategorized | ||
|---|---|---|
| Items | 2 Axis | |
| Type | NO MILLING | MILLING | |
| Lc maximun turning dia (mm) | < 350 | |
| Lc between centers (mm) | < 800 | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø430
Ø16.92
Ø430
Ø16.92
Standard turning dia
mm
inch
Ø230
Ø9.05
Ø250
Ø9.84
Maximum turning dia
mm
inch
Ø320
Ø12.59
Ø260
Ø10.23
Max. turning length
mm
inch
420
16.53
420
16.53
Main Spindle
Max speed
rpm
4200
4200
Nose (chuck)
inch
A2-6 (8")
A2-6 (8")
Bar capacity
mm
inch
Ø52
Ø2.04
Ø52
Ø2.04
Turret
NO. of tools (live)
T
12
12
Shank size
mm
□25
□25
Tailstock
Quill taper
M.T. #4
M.T. #4
Machine
Weight
kg
lb
4500
9920.78
4560
10053.06
