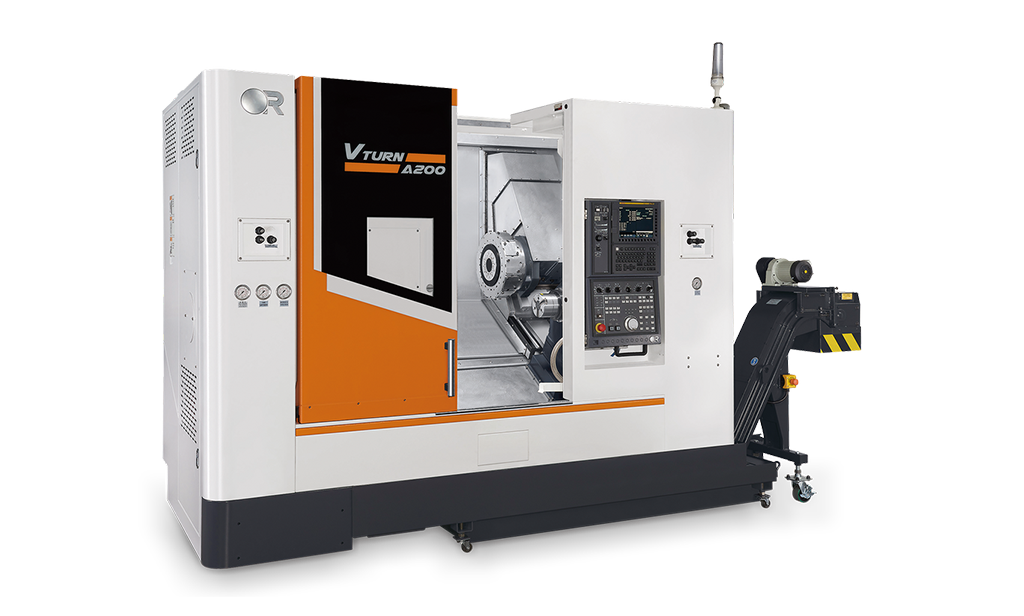

Vturn-A200/60
Horizontal Turning Center Vturn-A Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over carriage dia | mm inch | Ø720 Ø28.34 |
| Standard turning dia | mm inch | Ø286 Ø11.25 |
| Maximum turning dia | mm inch | Ø330 Ø12.99 |
| Max. turning length | mm inch | 604 23.77 |
| Main Spindle | ||
|---|---|---|
| Max speed | 4200 | |
| Nose (chuck) | A2-6 (8") | |
| Bar capacity | mm inch | Ø52 Ø2.04 |
| Sub Spindle | ||
|---|---|---|
| Max speed | － | |
| Nose (chuck) | － | |
| Bar capacity | mm inch | － － |
| Turret | ||
|---|---|---|
| NO. of tools (live) | 12 | |
| Shank size | □20 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #4 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 6700 14770.95 |
| Uncategorized | ||
|---|---|---|
| Items | SM | |
| Type | MILLING | SUB-SPINDLE | |
| Lc maximun turning dia (mm) | 351 ~ 550 | |
| Lc between centers (mm) | < 800 | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over carriage dia
mm
inch
Ø555
Ø21.85
Ø720
Ø28.34
Ø720
Ø28.34
Ø720
Ø28.34
Ø720
Ø28.34
Standard turning dia
mm
inch
Ø286
Ø11.25
Ø286
Ø11.25
Ø286
Ø11.25
Ø286
Ø11.25
Ø286
Ø11.25
Maximum turning dia
mm
inch
Ø330
Ø12.99
Ø330
Ø12.99
Ø330
Ø12.99
Ø330
Ø12.99
Ø330
Ø12.99
Max. turning length
mm
inch
604
23.77
604
23.77
604
23.77
604
23.77
604
23.77
Main Spindle
Max speed
rpm
4200
4200
4200
4200
4200
Nose (chuck)
inch
A2-6 (8")
A2-6 (8")
A2-6 (8")
A2-6 (8")
A2-6 (8")
Bar capacity
mm
inch
Ø52
Ø2.04
Ø52
Ø2.04
Ø52
Ø2.04
Ø52
Ø2.04
Ø52
Ø2.04
Sub Spindle
Max speed
rpm
7000
－
7000
－
7000
Nose (chuck)
inch
A2-5 (5")
－
A2-5 (5")
－
A2-5 (5")
Bar capacity
mm
inch
Ø30
Ø1.18
－
－
Ø30
Ø1.18
－
－
Ø30
Ø1.18
Turret
NO. of tools (live)
T
12
12
12
12
12
Shank size
mm
□20
□20
□20
□20
□20
Tailstock
Quill taper
－
M.T. #4
－
M.T. #4
－
Machine
Weight
kg
lb
6700
14770.95
6500
14330.02
6700
14770.95
6800
14991.41
7000
15432.33
