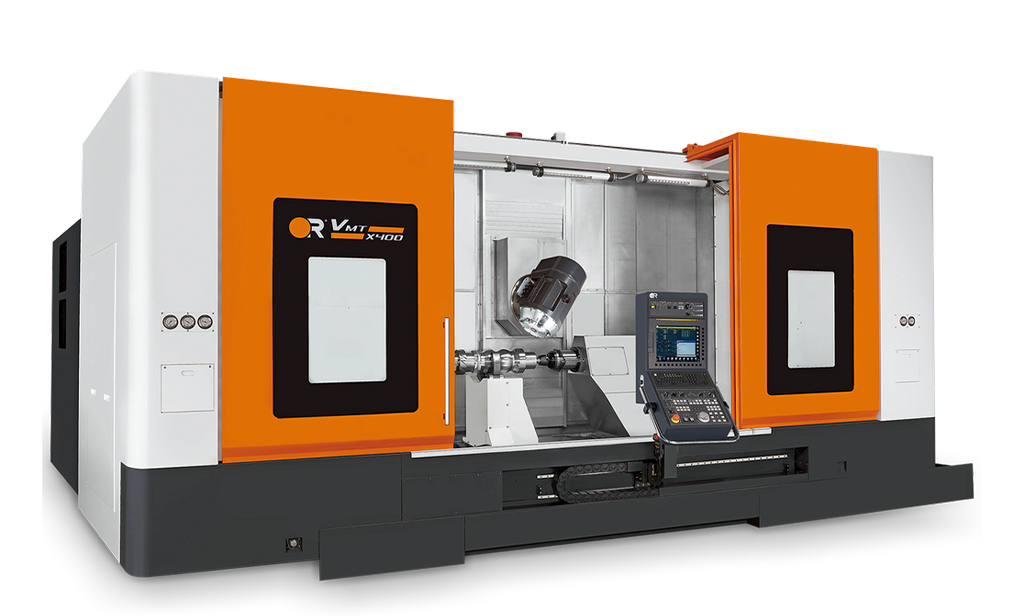

VMT-X360
Multi-tasking Milling Turning Center VTM-X Series
Specifications
| Capacity | ||
|---|---|---|
| Swing over bed dia | mm inch | Ø1120 Ø44.09 |
| Maximum turning dia | mm inch | Ø720 Ø28.34 |
| Max. turning length | mm inch | 2100 82.67 |
| Axis Travel |
|---|
| Main Spindle | ||
|---|---|---|
| Max speed | 3000 | |
| Nose (chuck) | A2-11 (12”) | |
| Bar capacity | mm inch | Ø91 Ø3.58 |
| Sub Spindle | ||
|---|---|---|
| Max speed | － | |
| Nose (chuck) | － | |
| Bar capacity | mm inch | － － |
| ATC Mill Spindle | ||
|---|---|---|
| Max speed | 12000 | |
| Motor power | KW HP | 15 / 18.5 / 22 20 / 25 / 30 |
| ATC Type | ||
|---|---|---|
| Tool type | HSK-T63 | |
| Capacity | 60 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #5 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 23500 51808.56 |
| Uncategorized | ||
|---|---|---|
| Items | Single SP | |
| Lc maximun turning dia (mm) | 551 < | |
| Lc between centers (mm) | 1501 < | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over bed dia
mm
inch
Ø1120
Ø44.09
Ø1120
Ø44.09
Maximum turning dia
mm
inch
Ø720
Ø28.34
Ø720
Ø28.34
Max. turning length
mm
inch
2100
82.67
2100
82.67
Main Spindle
Max speed
rpm
3000
3000
Nose (chuck)
inch
A2-11 (12”)
A2-11 (12")
Bar capacity
mm
inch
Ø91
Ø3.58
Ø91
Ø3.58
Sub Spindle
Max speed
rpm
－
3000
Nose (chuck)
inch
－
A2-11 (12")
Bar capacity
mm
inch
－
－
Ø91
Ø3.58
ATC Mill Spindle
Max speed
rpm
12000
12000
Motor power
KW
HP
15 / 18.5 / 22
20 / 25 / 30
15 / 18.5 / 22
20 / 25 / 30
ATC Type
Tool type
HSK-T63
HSK-T63
Capacity
T
60
60
Tailstock
Quill taper
M.T. #5
-
Machine
Weight
kg
lb
23500
51808.56
23500
51808.56
