Specifications

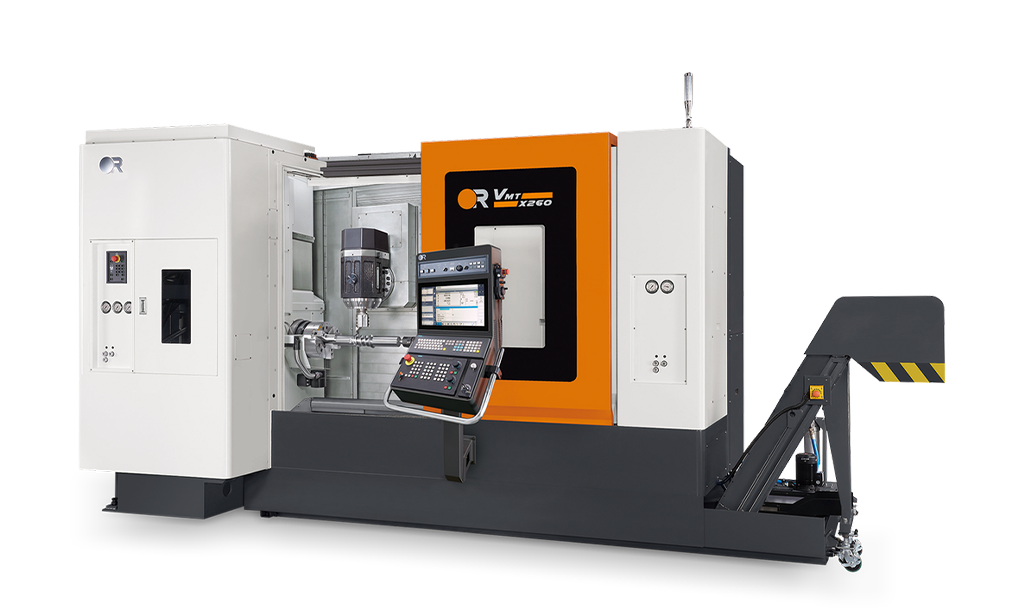

X260 (Single SP)
| Capacity | ||
|---|---|---|
| Swing over bed dia | mm inch | Ø25.98 Ø660 |
| Maximum turning dia | mm inch | Ø19.68 Ø500 |
| Max. turning length | mm inch | 42.32 1075 |
| Axis Travel |
|---|
| Main Spindle | ||
|---|---|---|
| Max speed | 3500 | |
| Nose (chuck) | A2-8 (10") | |
| Bar capacity | mm inch | Ø2.95 Ø75 |
| Sub Spindle | ||
|---|---|---|
| Max speed | － | |
| Nose (chuck) | － | |
| Bar capacity | mm inch | － － |
| ATC Mill Spindle | ||
|---|---|---|
| Max speed | 12000 | |
| Motor power | KW HP | 20 / 25 / 30 15 / 18.5 / 22 |
| ATC Type | ||
|---|---|---|
| Tool type | HSK-T63 | |
| Capacity | 40 | |
| Tailstock | ||
|---|---|---|
| Quill taper | M.T. #5 | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 27557.74 12500 |
| Uncategorized | ||
|---|---|---|
| Items | Single SP | |
| Lc maximun turning dia (mm) | 351 ~ 550 | |
| Lc between centers (mm) | 801 ~ 1500 | |
Specifications
Add to
Compare
Items
Unit
Capacity
Swing over bed dia
mm
inch
Ø660
Ø25.98
Ø660
Ø25.98
Maximum turning dia
mm
inch
Ø500
Ø19.68
Ø500
Ø19.68
Max. turning length
mm
inch
1075
42.32
1075
42.32
Main Spindle
Max speed
rpm
3500
3500
Nose (chuck)
inch
A2-8 (10")
A2-8 (10")
Bar capacity
mm
inch
Ø75
Ø2.95
Ø75
Ø2.95
Sub Spindle
Max speed
rpm
－
4000
Nose (chuck)
inch
－
A2-6 (8")
Bar capacity
mm
inch
－
－
Ø66
Ø2.59
ATC Mill Spindle
Max speed
rpm
12000
12000
Motor power
KW
HP
15 / 18.5 / 22
20 / 25 / 30
15 / 18.5 / 22
20 / 25 / 30
ATC Type
Tool type
HSK-T63
HSK-T63
Capacity
T
40
40
Tailstock
Quill taper
M.T. #5
-
Machine
Weight
kg
lb
12500
27557.74
12000
26455.43
