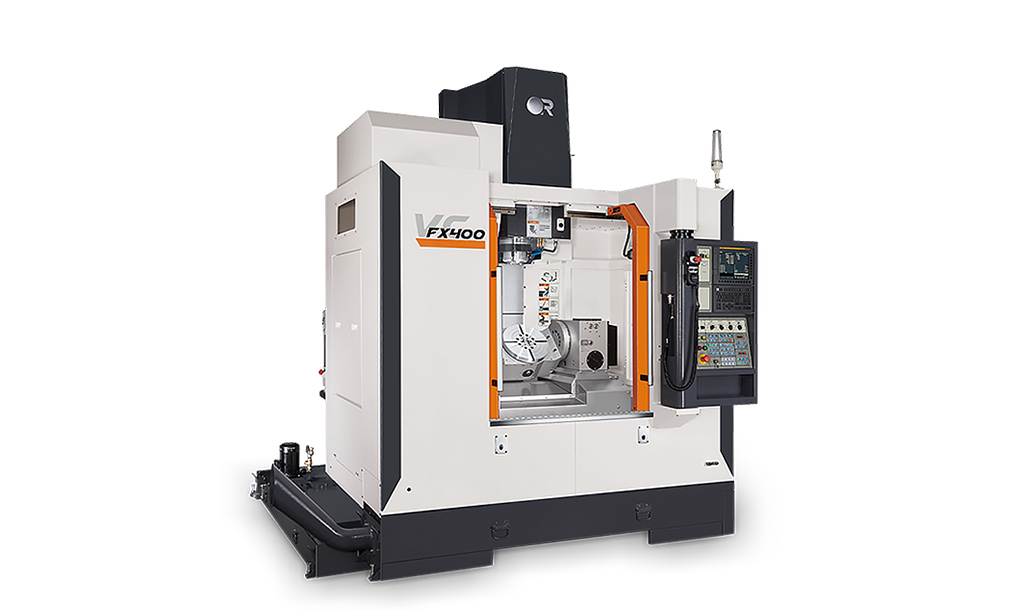

Vcenter-FX400
5-Axis Vertical Machining Center Vcenter-FX Series
Specifications
| Travel | ||
|---|---|---|
| X axis | mm inch | 600 23.62 |
| Y axis | mm inch | 500 19.68 |
| Z axis | mm inch | 500 19.68 |
| A axis | -120 ~ 30 | |
| C axis | 0 ~ 360 | |
| Table | ||
|---|---|---|
| Work area | mm inch | Ø320 Ø12.59 |
| T-slot | mm | 12H7 |
| Max load | kg lb | 200 440.92 |
| Spindle | ||
|---|---|---|
| Quill taper | BBT-40 | |
| Motor power | KW HP | 11 / 15 15 / 20 |
| Max speed | 12000 | |
| Tools | ||
|---|---|---|
| Capacity | 24 | |
| Max wight | kg lb | 7 15.43 |
| Accuracy (ISO 230-2) | ||
|---|---|---|
| Accuracy | 0.010 | |
| Repeatability | 0.007 (±0.0035) | |
| Machine | ||
|---|---|---|
| Weight | kg lb | 6100 13448.18 |
| Uncategorized | ||
|---|---|---|
| Items | Non CTS | |
| Mc table work area (mm) | < 380 | |
Specifications
Add to
Compare
Items
Unit
Travel
X axis
mm
inch
600
23.62
600
23.62
Y axis
mm
inch
500
19.68
500
19.68
Z axis
mm
inch
500
19.68
500
19.68
A axis
deg
-120 ~ 30
-120 ~ 30
C axis
deg
0 ~ 360
0 ~ 360
Table
Work area
mm
inch
Ø320
Ø12.59
Ø320
Ø12.59
T-slot
mm
12H7
12H7
Max load
kg
lb
200
440.92
200
440.92
Spindle
Quill taper
BBT-40
BBT-40
Motor power
KW
HP
11 / 15
15 / 20
7.5 / 11 / 15
10 / 15 / 20
Max speed
rpm
12000
12000
Tools
Capacity
T
24
24
Max wight
kg
lb
7
15.43
7
15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg
lb
6100
13448.18
6100
13448.18
