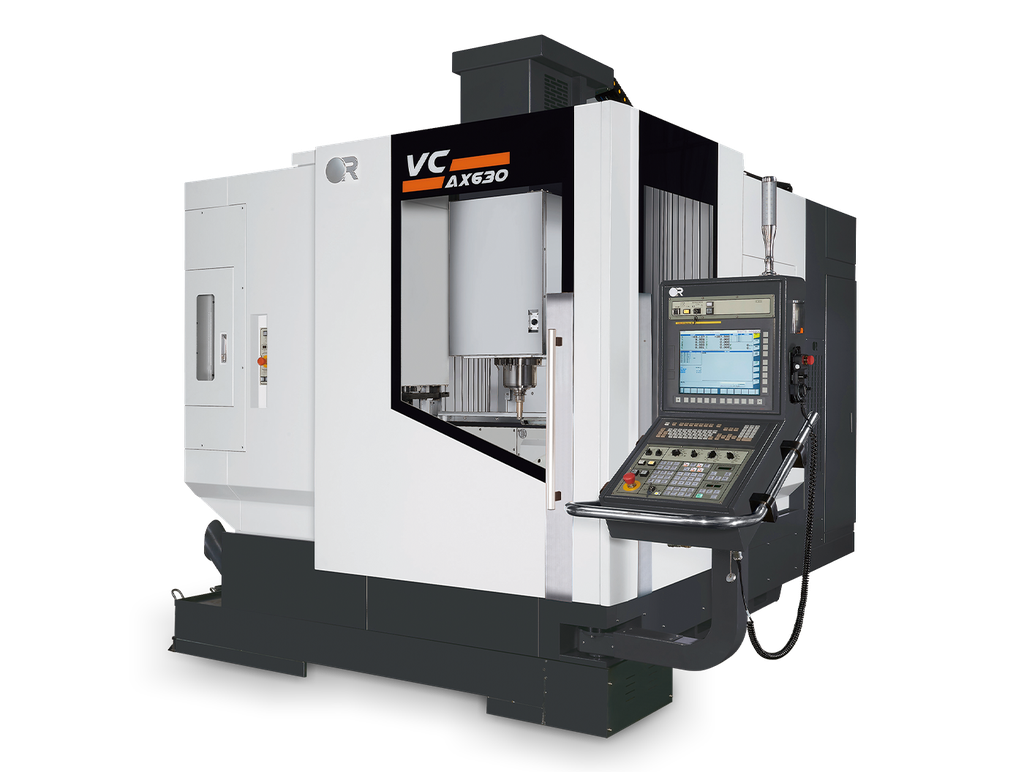

Vcenter-AX630

AX630 (Non CTS)
https://machine-tools.victortaichung.com/web/image/product.template/28/image_1920?unique=fc7e0ad

5-Axis CNC Machining Center Vcenter-AX Series

Video 01    Video 02

  • Items

This combination does not exist.

Specifications

AX630 (Non CTS)
Travel
X axis mm inch 700 27.55
Y axis mm inch 500 19.68
Z axis mm inch 500 19.68
B axis -30 ~ 110
C axis 0 ~ 360
Table
Work area mm inch Ø630 x 500 Ø24.8 x 19.68
T-slot mm 5 x 18H7 x 100
Max load kg lb 300 661.38
Spindle
Quill taper BBT-40
Motor power KW HP 11 / 15 / 18.5 15 / 20 / 25
Max speed 12000
Tools
Capacity 30
Max wight kg lb 7 15.43
Accuracy (ISO 230-2)
Accuracy 0.010
Repeatability 0.007 (±0.0035)
Machine
Weight kg lb 9000 19841.57
Uncategorized
Items Non CTS
Mc table work area (mm) 381 ~ 630

Specifications

Previous
Next
Add to Compare
Items
Unit
Travel
X axis
mm inch
700 27.55
700 27.55
Y axis
mm inch
500 19.68
500 19.68
Z axis
mm inch
500 19.68
500 19.68
B axis
-30 ~ 110
-30 ~ 110
C axis
deg
0 ~ 360
0 ~ 360
Table
Work area
mm inch
Ø630 x 500 Ø24.8 x 19.68
Ø630 x 500 Ø24.8 x 19.68
T-slot
mm
5 x 18H7 x 100
5 x 18H7 x 100
Max load
kg lb
300 661.38
300 661.38
Spindle
Quill taper
BBT-40
BBT-40
Motor power
KW HP
11 / 15 / 18.5 15 / 20 / 25
7.5 / 11 / 15 10 / 15 / 20
Max speed
rpm
12000
12000
Tools
Capacity
T
30
30
Max wight
kg lb
7 15.43
7 15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg lb
9000 19841.57
9000 19841.57
