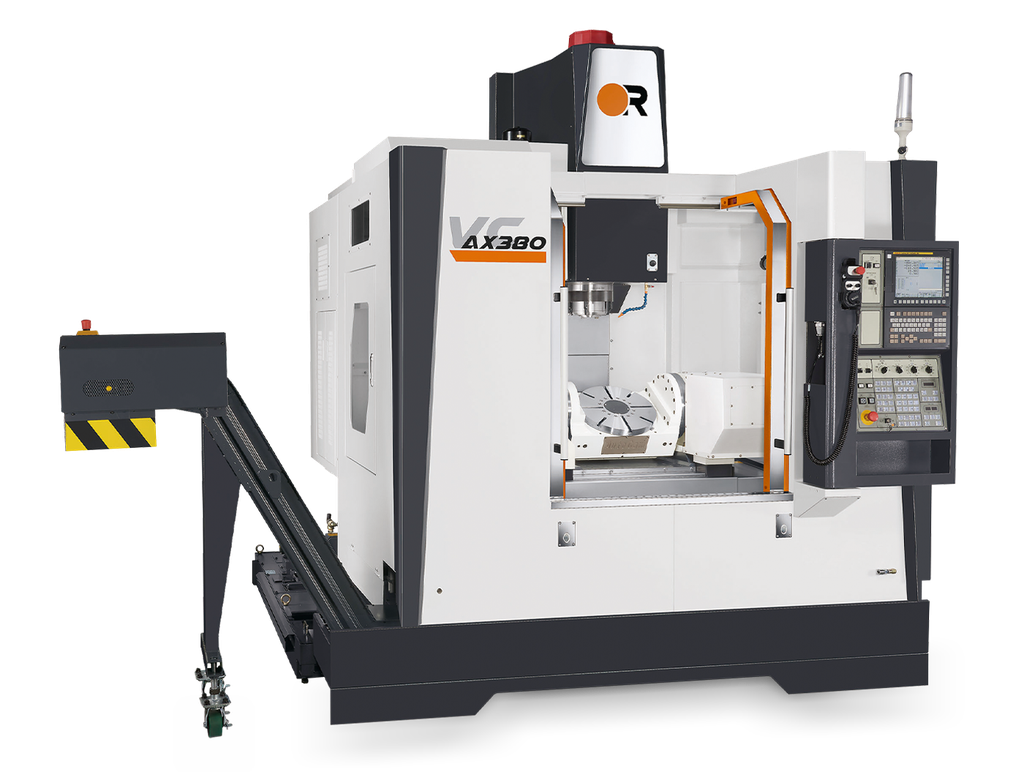

Vcenter-AX380

AX380 (Non CTS)
https://machine-tools.victortaichung.com/web/image/product.template/27/image_1920?unique=c7ba5fa

5-Axis CNC Machining Center Vcenter-AX Series

Video

  • Items

This combination does not exist.

Specifications

AX380 (Non CTS)
Travel
X axis mm inch 700 27.55
Y axis mm inch 500 19.68
Z axis mm inch 540 21.25
A axis -120 ~ 30
C axis 0 ~ 360
Table
Work area mm inch Ø380 Ø14.96
T-slot mm 12H7
Max load kg lb 200 440.92
Spindle
Quill taper BBT-40
Motor power KW HP 11 / 15 / 18.5 15 / 20 / 25
Max speed 12000
Tools
Capacity 30
Max wight kg lb 7 15.43
Accuracy (ISO 230-2)
Accuracy 0.010
Repeatability 0.007 (±0.0035)
Machine
Weight kg lb 6000 13227.71
Uncategorized
Items Non CTS
Mc table work area (mm) < 380

Specifications

Previous
Next
Add to Compare
Items
Unit
Travel
X axis
mm inch
700 27.55
700 27.55
Y axis
mm inch
500 19.68
500 19.68
Z axis
mm inch
540 21.25
540 21.25
A axis
deg
-120 ~ 30
-120 ~ 30
C axis
deg
0 ~ 360
0 ~ 360
Table
Work area
mm inch
Ø380 Ø14.96
Ø380 Ø14.96
T-slot
mm
12H7
12H7
Max load
kg lb
200 440.92
200 440.92
Spindle
Quill taper
BBT-40
BBT-40
Motor power
KW HP
11 / 15 / 18.5 15 / 20 / 25
7.5 / 11 / 15 10 / 15 / 20
Max speed
rpm
12000
12000
Tools
Capacity
T
30
30
Max wight
kg lb
7 15.43
7 15.43
Accuracy (ISO 230-2)
Accuracy
mm
0.010
0.010
Repeatability
mm
0.007 (±0.0035)
0.007 (±0.0035)
Machine
Weight
kg lb
6000 13227.71
6000 13227.71
